PM 210028SP for sale - Canada

ON REQUEST
ON REQUEST
PM 210028SP

BASIC INFORMATION

CategoryOther Cranes and Lifting Machines
Brand / modelPM 210028SP
Extra optionsNew/unused
LocationMilford, Massachusetts
Country
Mascus IDADF13EDF
+ Show more details

PRICING

Price Excluding TaxOn Request

DETAILS

Condition level grade (1-5)
Maximum lift capacity462,970 lbs
Additional informationBOOM DETAILS

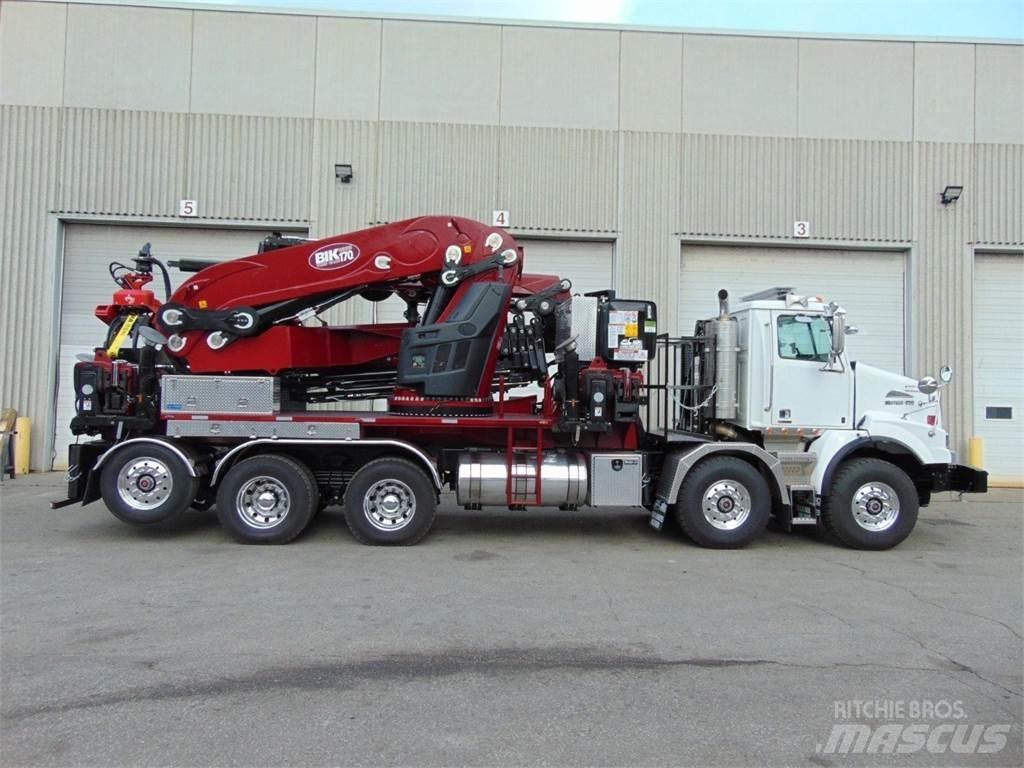

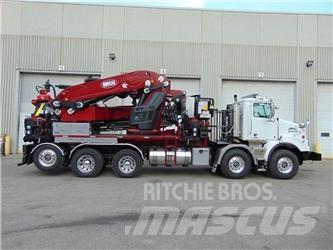

NEW – PM 210028SP+J3106SP KNUCKLE BOOM – HYDRAULIC KNUCKLE BOOM WITH JIB FOLD OVER REAR OF TRUCK

Up to 178’ Vertical Reach with Two Optional Manual Pull-out Extensions

8 Hyd Extensions in Main Boom to 102’ Vertical with Boom Angle at 85 Degrees – Best in its Class

6 Hyd Extensions in Jib Booms to 162’ Total Hydraulic Vertical Reach

Continuous Rotation and Dual Planetary Gear Rotation, Double Pilot Operated on Slewing & Pilot Operated Check Valves on All Cylinders

Special Extra High Tensile Steel Structure, Lowest Weight to Ton/M Size in its Class

Dual Main Lift and Dual Knuckle Lift Cylinders – Greater Power and Easy Access

Hydraulic Extra Wide Main Outriggers at Pedestal – 40’ – Hydraulic Tilting When Retracted

Auxiliary 34’ Spread Stabilizers Installed at Rear Behind Drives, 2 Hyd Out & Down Rearward & 1 at Front Bumper

Dual PTO’s and Hydraulic Pumps Installed on Aux Trans for Consistent Operation Speed & Power when Activating Multi-Function Movement

Dual Hydraulic Oil Coolers, Dual High Pressure & Return Filters and Min. 125-Gallon Oil Tank for Boom

DANFOSS Split Valve – 2 Pressure Line System Proportional Control Valve & SCANRECO Proportional Radio Remote Control

PM Power Tronic Electronic System allowing Constant Crane Monitoring & Visual Display

SCANRECO Radio Remote Control Includes: 2 Batteries, In-cab Charger, Back-up Cord, Crane Painted PM Blue, Load Chart in FT. & LBS.

Access Ladders to Front of Bed Wings on Both Sides, Winch Accessory Storage Areas Including Two 36” Storage Boxes

Warranty: 1-Yr. Parts & Labor on Entire Boom, 3-Yr. on Structural Components

TRUCK DETAILS
NEW –

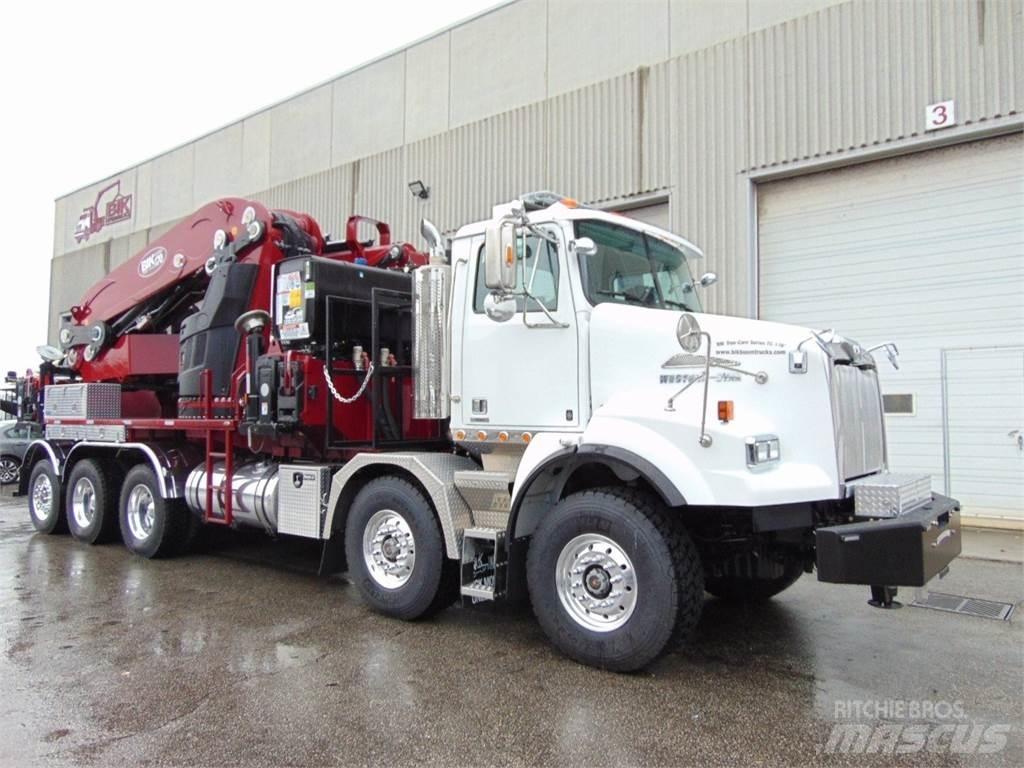

WESTERN STAR 4800 SLOPED SHORT NOSE T/A STEER – T/A REAR WITH LIFT AXLE

5 AXLE DDC-13 Diesel – 470 HP with Jake

Eaton Ultrashift Automated 18 Speed Trans.

Auxiliary Transmission for Dual PTO Drives

(2) x 20,000 lb Fronts with 425 / 65R22.5 Tires

46,000 lb Rears on Air Ride Susp.

20,000 lb Self Steer Lift Axle Ahead of T/A’s, Double Frame

Polished ALCOA Alum Wheels Front and Outer Rear

Chrome Single Polished Exhaust &
Chrome Grill & Bumper

100-Gallon Aluminum Fuel Tank

Loaded with Options Including:
A/C, Tilt/Telescopic Steering, Top Level Interior, AM/FM/CD, Air Driver’s Seat, Fixed Passenger Seat, Cruise, Heated Mirrors, Exterior S/S Sun Visor, 4 Wheel Lock-ups, Power Window Both Sides, Power Mirrors & Door Locks, Air Ride Cab, Full Differential Locks, Trailer Air Tow Package, Truck Cab White Color, Dot Bumper, etc…

Also Included:

Program Remote Control to include Engine Start/Stop and Variable Engine

(3) Aluminum Storage Boxes and (1) Vertical Cabinet

(7) Pcs. 24” x 24” x 2” PVC Stabilizer Pads with Holders on Both Sides of Truck

Additional Options Available:

Lifting Winch to Boom with Related Plumbing/Accessories

1” Drawplate Installed at Rear of Truck Frame (for possible pintle hook)
