PM 26523 for sale - the United States

ON REQUEST
ON REQUEST

BASIC INFORMATION

CategoryOther Cranes and Lifting Machines
Brand / modelPM 26523
Extra optionsNew/unused
LocationMilford, Massachusetts
Country
United States
Mascus ID858470BE

PRICING

Price Excluding TaxOn Request

DETAILS

Condition level grade (1-5)
Additional informationBOOM DETAILS

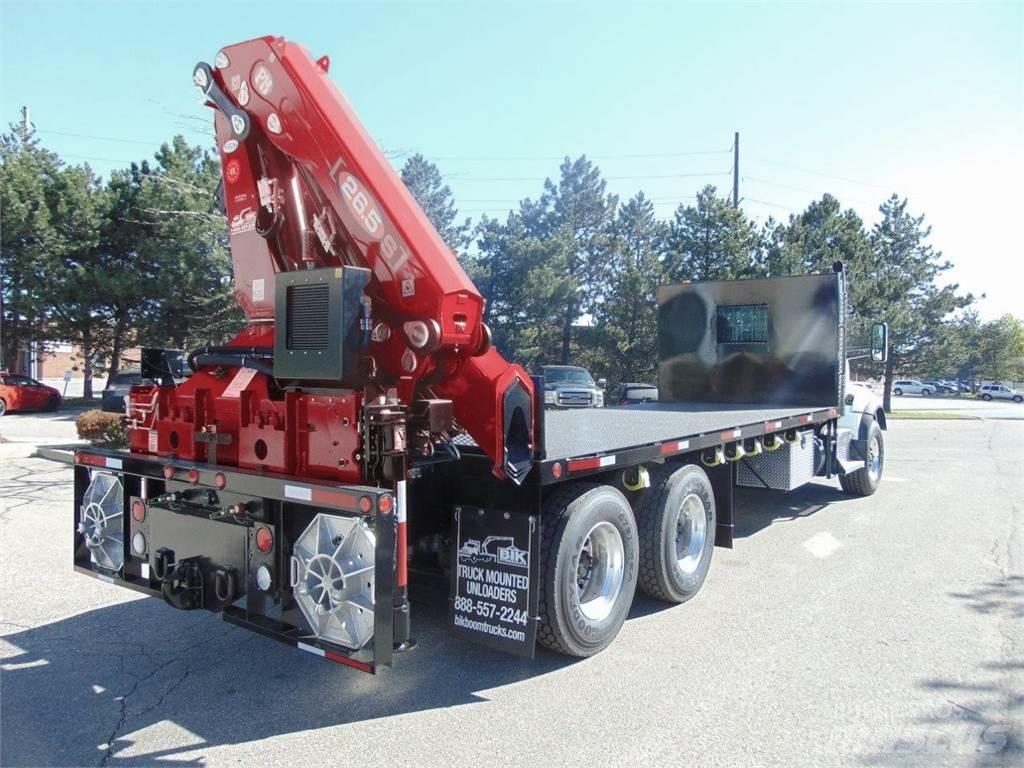

NEW – PM 26523 KNUCKLE BOOM

Folding Knuckle Boom

3 Hyd Extensions to 33’ 4” Horizontal Reach (45’ Vertical)

Horizontal Capacity:

12,000 lb ... 14’

8,400 lb ... 20’

6,300 lb ... 26’

5,000 lb ... 33’

408 Degrees Rotation on Main Hydraulic Slewing

Crane Painted PM Blue

Double Pilot Operated on Slewing and Pilot Operated Check Valves on All Cylinders

Hydraulic Oil Cooler, High Pressure Return Filter and min. 40-Gallon Oil Tank for Boom

DANFOSS Proportional Valve Controls – Single-Sided Operator Control Station

SCANRECO Radio Remote Control – Electronically Actuated Controller, Proportional Precision and Ultimate Operator Feel and Control

Radio Remote Includes: 5 Micro Speed-Reducing Settings from Handheld Unit, Emergency Stop, 2 Batteries with In-Cab Charger, 50’ Back-up Cord

Hydraulic OUT and Hydraulic DOWN 2-Sided Stabilizers w/Round Foot Pads Welded to Bottom of Cylinder

15 Degree Negative Angle on Folding Arm – Hydraulic Overload Protection – Simplified System that Prevents Boom from Overload

Load Holding Valves on Each Cylinder for Safety and Security of Operator and Load

Heavy Duty Pedestal Turning Cylinders for Greater Turning Torque, Reduced Wear, and Improved Precision

Installed End of Frame, with Integral Sub-Frame to Meet or Exceed all CMVSS Standards, Stability Tested & Certified by Engineer

TRUCK DETAILS

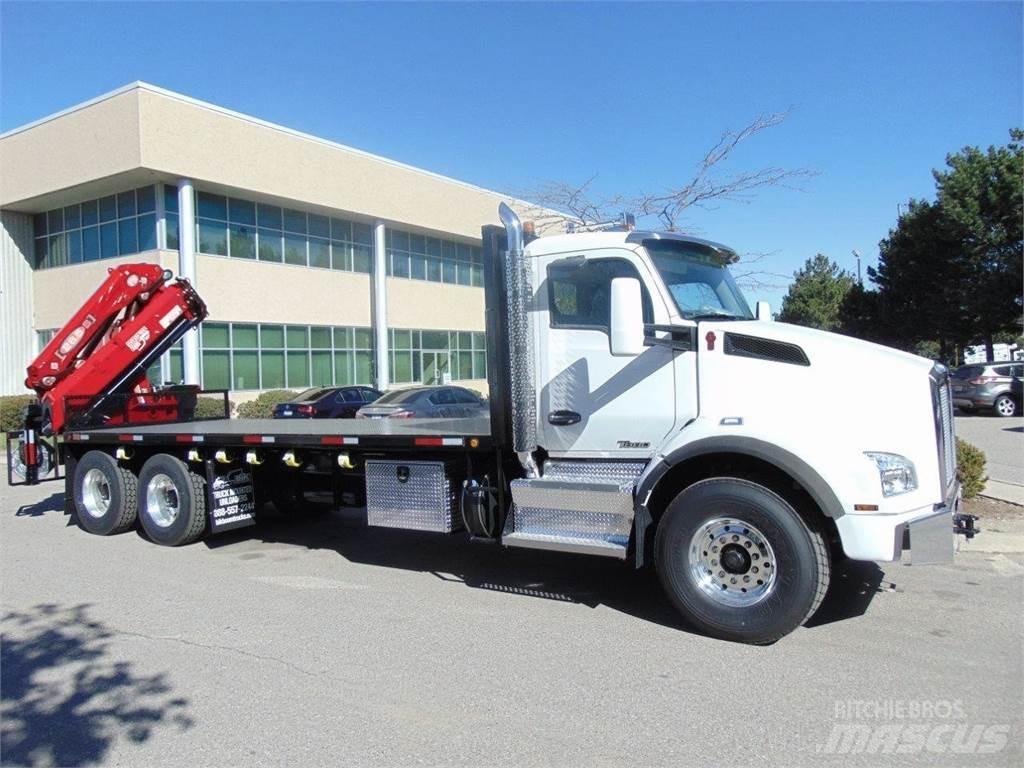

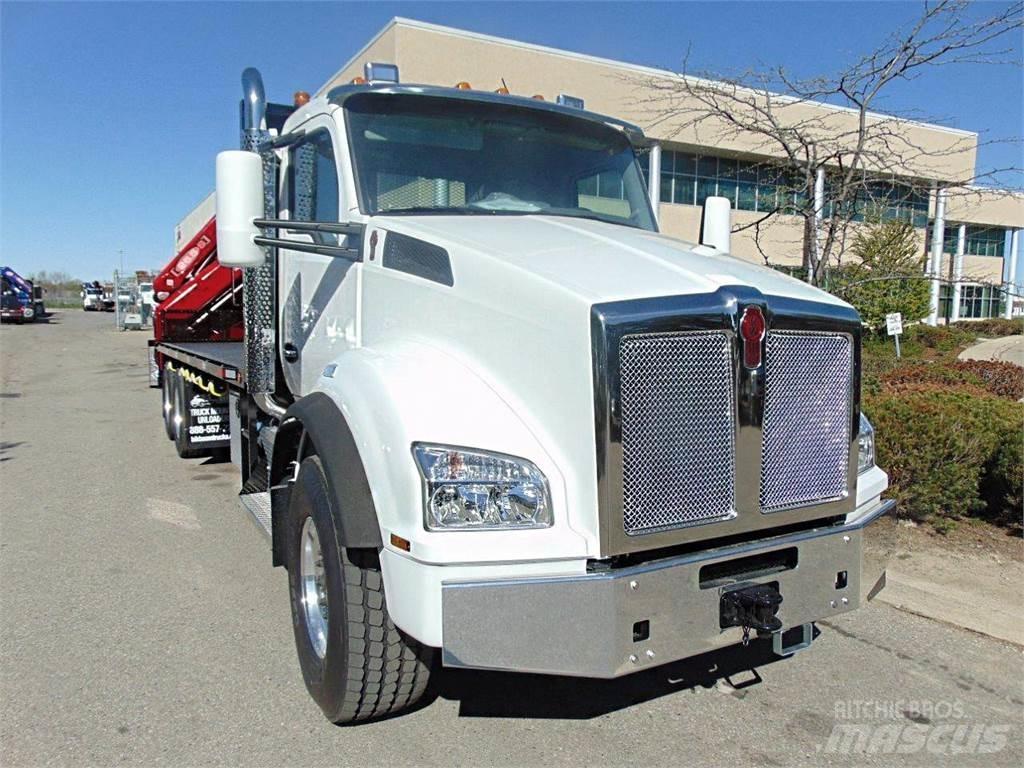

NEW – KENWORTH T880-SH T/A TRUCK:  66,000 LB GVWR

Paccar MX – 485 hp with Engine Brake – Eaton Ultrashift Plus – Automated 18 Spd Trans.

4.10 Rear Axle Ratio, Truck Cab White

20,000 lb Fronts with 425 / 65R22.5 Tires

46,000 lb Rears on Hendrickson Pri-Max Air Ride Susp., Double Frame, Polished ALCOA Aluminum Wheels Front and Rear

Chrome Grill & Bumper, Single 120-Gallon Alum Fuel Tank

Options Include:
  A/C, Tilt/Telescopic Steering, AM/FM with Bluetooth Weather-Band, Air Ride Driver’s and Fixed Pass. Seat, Cruise, Heated Mirrors, Painted Ext. Sun Visor, 4 Wheel Lock-ups, Pass. Side Power Windows/Locks, Air Ride Cab, Trailer Tow Package, etc…

Other Options Available
:

36” up to 60” Aluminum Storage Box

Dealer Installed Dual Roof-Mounted Strobe Lights

Pair of Aluminum Stabilizer Pads with Holders at Rear Bumper

1” Drawplate Installed at Rear of Truck with Heavy Duty Pintle Hook

DECK DETAILS
NEW 21’ 6” X 102” DECK

Installed on Truck,
 with 54” of Main Sill Overhang for Sub-Frame of Knuckle Boom

Steel Checker Plate (or) Hardwood Deck Surface

66” Headboard, Sliding Track on Pass. Side w/ 6 Winches and Straps

Painted Gloss Black
