PM 47529 for sale - the United States

ON REQUEST
ON REQUEST
PM 47529

BASIC INFORMATION

CategoryOther Cranes and Lifting Machines
Brand / modelPM 47529
Extra optionsNew/unused
LocationMilford, Massachusetts
Country
United States
Mascus ID51D45548
+ Show more details

PRICING

Price Excluding TaxOn Request

DETAILS

Condition level grade (1-5)
Additional informationBOOM DETAILS

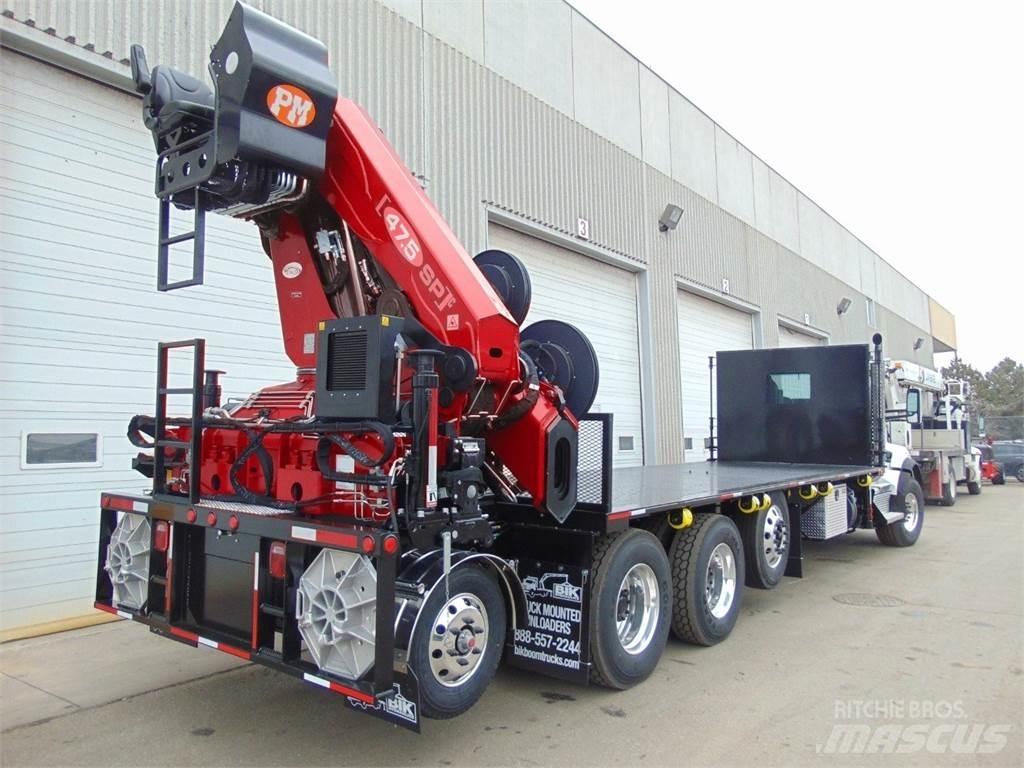

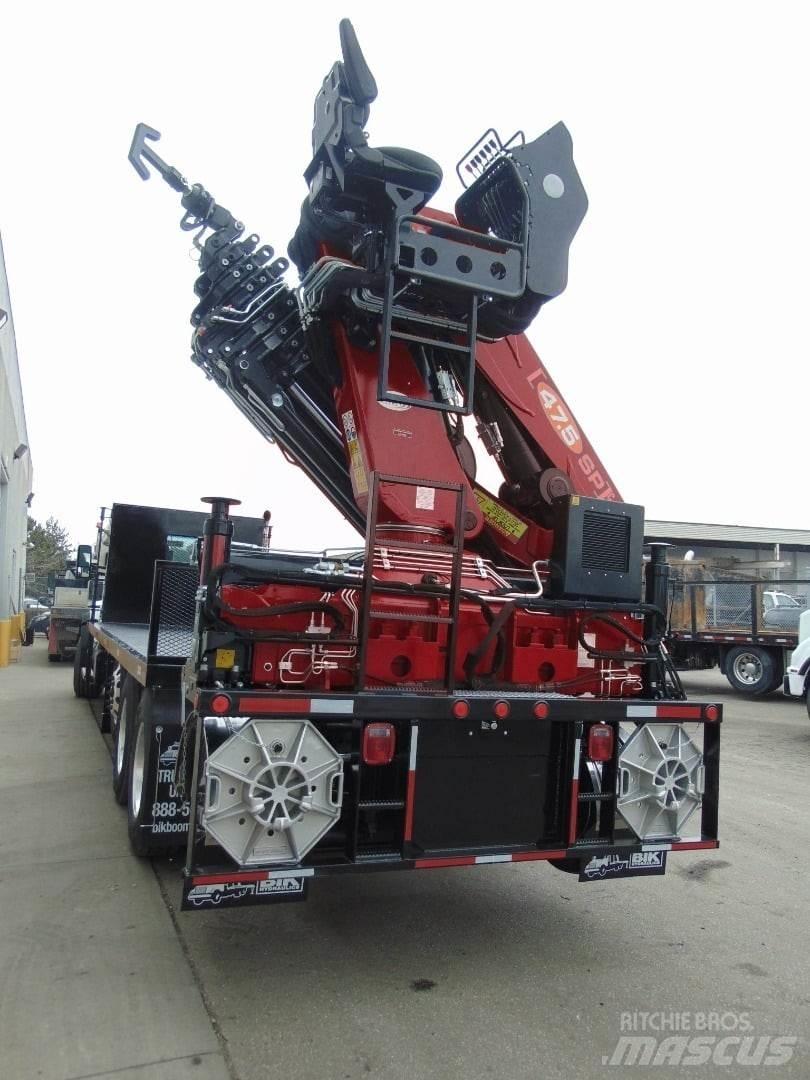

NEW PM 47529S-LC-PX KNUCKLE BOOM

:

Folding Hydraulic 8 Ext. Knuckle Boom – 74’ Horizontal Reach (86’ Vertical)

Horizontal Capacity:

21,000 lb ... 13’

10,200 lb ... 24’

5,800 lb ... 37’

3,950 lb ... 51’

2,900 lb ... 66’

2,600 lb ... 74’

PM Power-Link Connections at Main, Knuckle and Jib Cylinders, High Torque Rack and Gear 410-Degree Non-Continuous Rotation

Double Pilot Operated on Slewing and Pilot Operating Check Valves on all Cylinders

Extra-Wide Main Outriggers at Pedestal, Double Beam – Hyd Out & Down 26’ 3” Span – Front Aux Stabilizers – Hyd Out & Down 16’ Span

Hydraulic Oil Cooler, High Pressure Return Filter and Min. 100-Gallon Hyd Aluminum Oil Tank with Gate Valves Mounted at Front Under Deck

Lift a 10’ Cage up Close at 2’ in Front of Boom with Special LC Type Extra Retraction Feature of the Extensions

Simplified Hydraulics – Hydraulic Overload LLD Protection and Load Holding Valve – Offers Simplicity, Reliability & Low Maintenance

Danfoss Proportional Control Valve at Ground and Top Seat with Ladder Access

Scanreco Proportional Radio Remote Control, Includes:  2 Batteries, In-Cab Charger & Back-up Cord – 5 Level Turtle (Micro) Slow Down Mode

Crane Painted PM Blue – Certified Painting Quality System – Load Tested and Certified

Warranty:  1 Year Parts & Labor on Entire Boom; 3 Year on Structural Components by PM – 24/7 Crane-Tech Support by BIK

DECK DETAILS
NEW – 21’ X 102” LOW PROFILE STEEL FLAT DECK

:  TO FIT 9’ TALL CAGES

Steel Headboard w/Side Wrap Winches

Steel Checker Plate Floor

Winch Bar and Holder

Integral 6” Sub-Frame and Extension at Rear as Torque Box for Boom with all Proper Engineered Sheer Plating, X-Braces & Support

2 Deck Access Ladders at Headboard, 2 Ladders at Rear

Reflectors and Mud Flaps

6 Sliding Winch and Track Under DecK

Deck Painted Gray

TRUCK DETAILS
NEW – KENWORTH T880 5-AXLE TRUCK

:  88,000 LBS GVWR – CAB WHITE

Paccar 485 hp – 1,650 ft/lb Torque, Jake Brake

20,000 lb Front Steer Axle with 4425/65T22.5 Tires on Aluminum Rims

13,000 lb Self-Steer Lift Axle Ahead of Tandem

46,000 lb Rears on Hendrickson Primax Suspension with 11R22.5 Tires on Aluminum Outer Rims

9,000 lb Tag Axle Under Boom

Longer WB (316”) to Accommodate 24’ Deck

54” Spread at TA, Double Frame

Loaded with Options Including:
  A/C, Tilt/Telescopic Steering, Power Window & Locks, AM/FM/MP-3 w/Bluetooth, Air Driver Seat and Standard Passenger Seat, Cruise, Heated Mirrors, Stainless Exterior Sun Visor, Air Ride Cab, 4-Wheel Lock ups, Trailer Air Tow Package, Chromed Front & Side Grill & Bumper, 100-Gal Alum Fuel Tank, etc

Additional Options Available:

19’ Long Removable Center Divider for Steel Flat Deck Proposed Above

24’ Aluminum Flat Deck with Alum Headboard and Removable Center Divider (Instead of Steel)

1” Drawplate Installed at Rear of Truck (for Possible Pintle Hook)

Pair of Aluminum Stabilizers (2 Pcs) with Holders

Standard 18-Spd Transmission (Instead of Automated 18-Spd)
