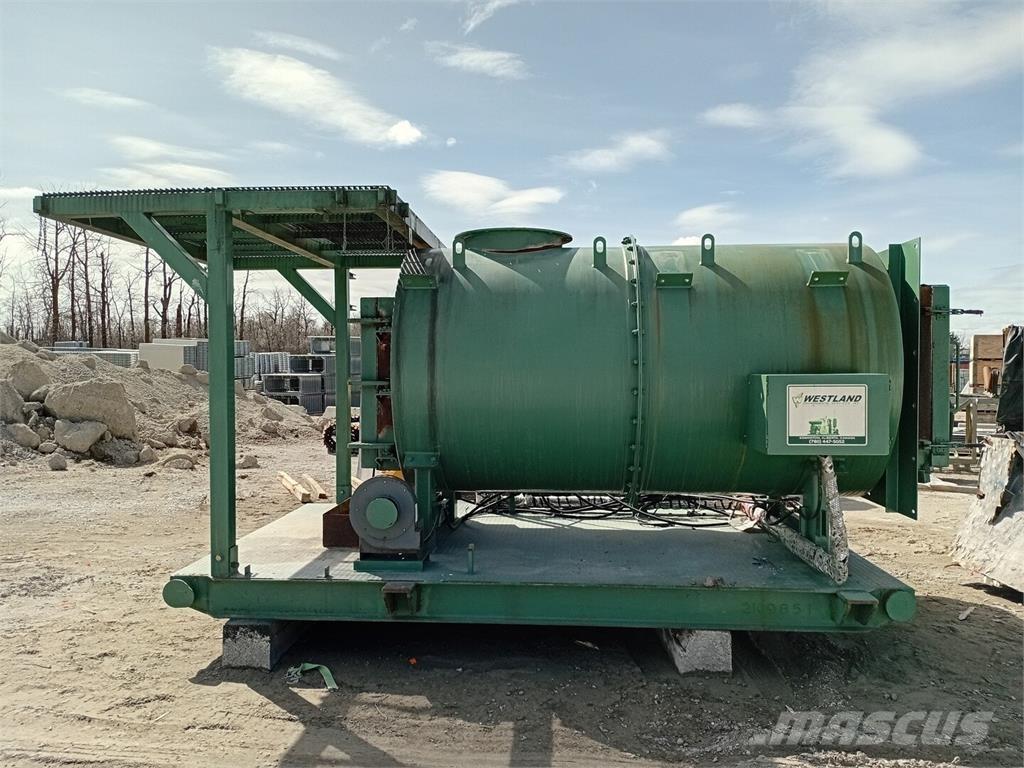

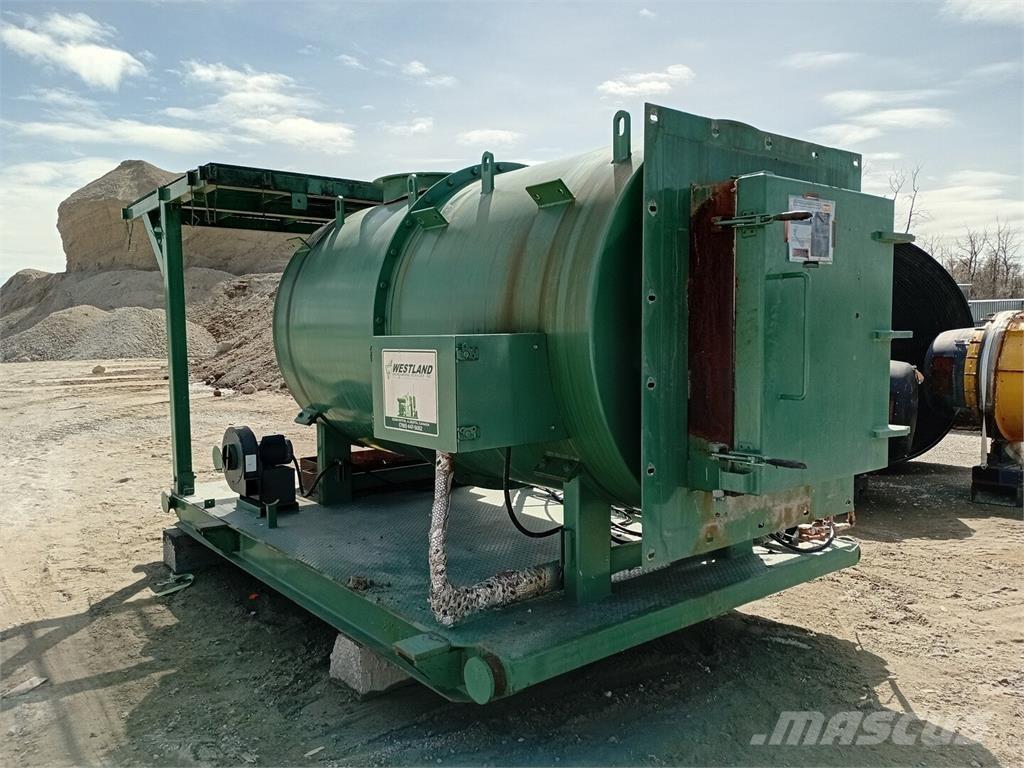

KETEK CY-100-CA

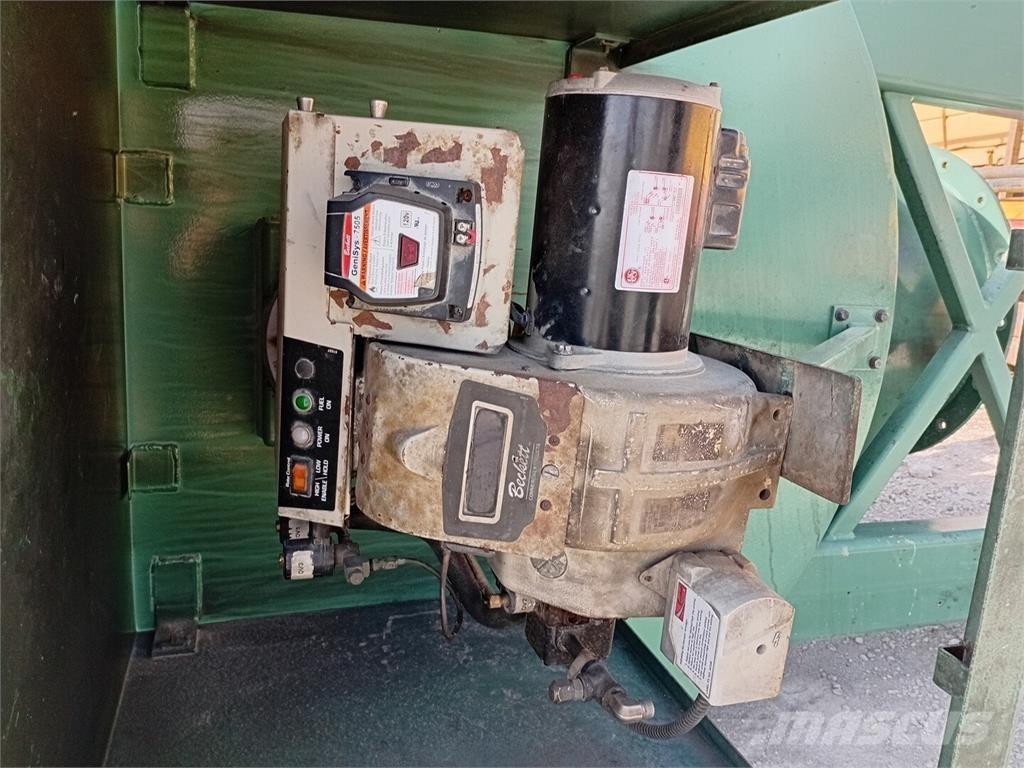

Cyclonator Incinerator CY-100-CA Title: Cyclonator Incinerator CY-100-CA SKU: 136389 Model: CY-100-CA Condition: Used Dimensions: 100.00 (H) x 108.00 (W) x 120.00 (L) inches [Ketek CY-100-CA Brochure](... Dual chamber, controlled-air operation - Secondary chamber gas residency time of two seconds - Built in safety features - Load-and-go operation - Low power consumption - Platform, ladder, ladder cage and handrails Control System - Load-and-go, one-button batch operation - Temperature control for primary and secondary chambers - PLC real-time data logging Fuel Supply (diesel-fired units) - Optional double-walled, 4,500 L fuel storage tank, c/w filter and flexible hose connection - Optional cold-climate package / Arctic fuel line Optional Fuels - LPG, natural gas, diesel - Combustion Chambers - The primary chamber is 2.74 m3 - The secondary chamber is 2.87 m3 Casing - 6.35 mm gauge steel - Lining: high-heat duty castable refractory over high-temperature insulation Refractory-lined Doors - 699 mm x 899 mm clear opening - 6.35 mm steel plate c/w heavy duty blade latch Adjustable Air Supply - Forced air fan c/w ducts to secondary flame port air jets Auxiliary Burners - Two 770,000 BTU/hr burners for primary chamber - 1,600,000 BTU/hr burner for secondary chamber Refractory-lined Stack - Diameter: 457 mm - Height: - Without spark arrestor: 3.7 m - With spark arrestor: 4.24 m Dimensions (Assembled) - L 6.1 m (20') - W 2.44 m (8') - H 8.9 m (29' 2") - Weight 16,300 kg (36,000 lbs)
