Vahva FORTI 200

Price excl. VAT

Compnay LOGO
Images6Videos1
Vahva FORTI 200 Rotators
Vahva FORTI 200 Rotators
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Category
Rotators
Brand / model
Vahva FORTI 200
Year
2015
Condition
Demo
Location
Saue
Country
Estonia
General grade
1
2
3
4
5
Mascus ID
24BE0111

PRICING

Select Currency

DETAILS

Customer asset number
VR50000
Full service history
Yes
Fits to following machines
a mechanical rototilt designed for excavators from 13 to 20 tonnes, can be fitted to stick with pin diameter 80 mm, distance between pins (pin spread) 485 mm, face spread (stick width) 335 mm (JCB).

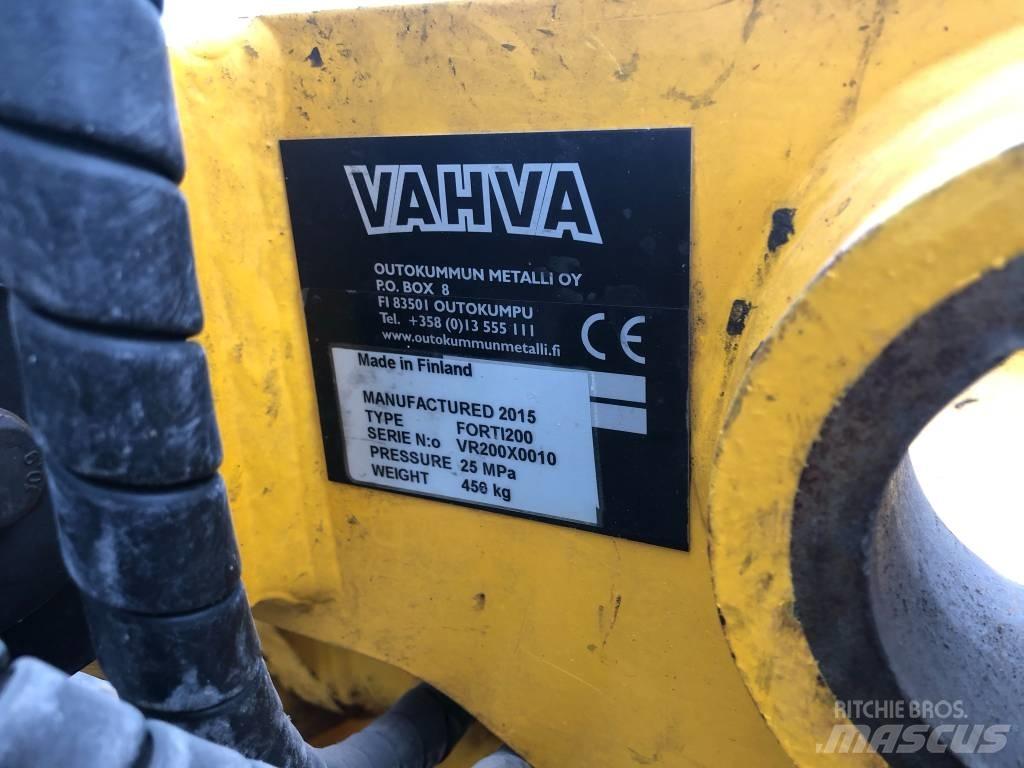

Serial number
VR200X0010
Working pressure
250 bar
Required hydraulic flow
80 l/min
Transport weight
992 lbs
Transport dimensions (LxWxH)
38.98 x 28.35 x 11.02 inches
Production country
Finland
Delivery terms
EXW
Certificates
CE
Additional information

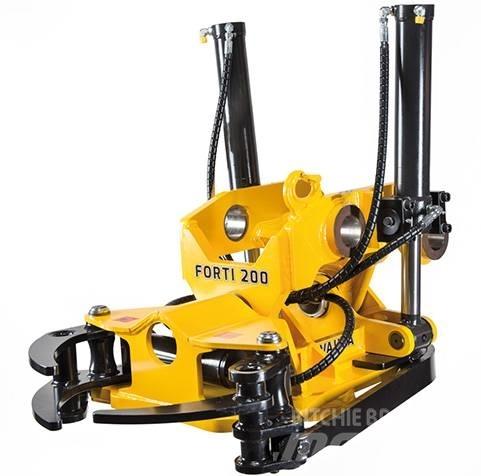

A new and cheaper alternative for tilt-rotator, features full hydraulic tilt and a manual rotation system, manufactured by Finnish company Vahva. The Vahva Forti 200 is a mechanical tilt-rotator designed for excavators from 13 to 20 tonnes. Like most tilt-rotators these days the bucket or attachment can be tilted hydraulically 45 degrees both ways. But it’s the rotation aspect which differs from conventional tilt-rotators, with no expensive gear drive or electrics involved in the build. The Forti 200 couples to the bucket or attachment by engaging with a conical disc, which is then tightened and locked in place by the gripper. When the operator wants to rotate his bucket to a desired position he simply loosens the grip slightly and manually pushes the bucket around before re-locking the mechanism. You can see the system in operation in this promotional video from Vahva. Maybe you would see this as a bit of a backward step with tilt-rotation systems, but surely it could appeal to those who are watching the pennies more closely and working on a tight budget maybe.Show more
