Case SR 220B

Price excl. VAT

Compnay LOGO
Images17

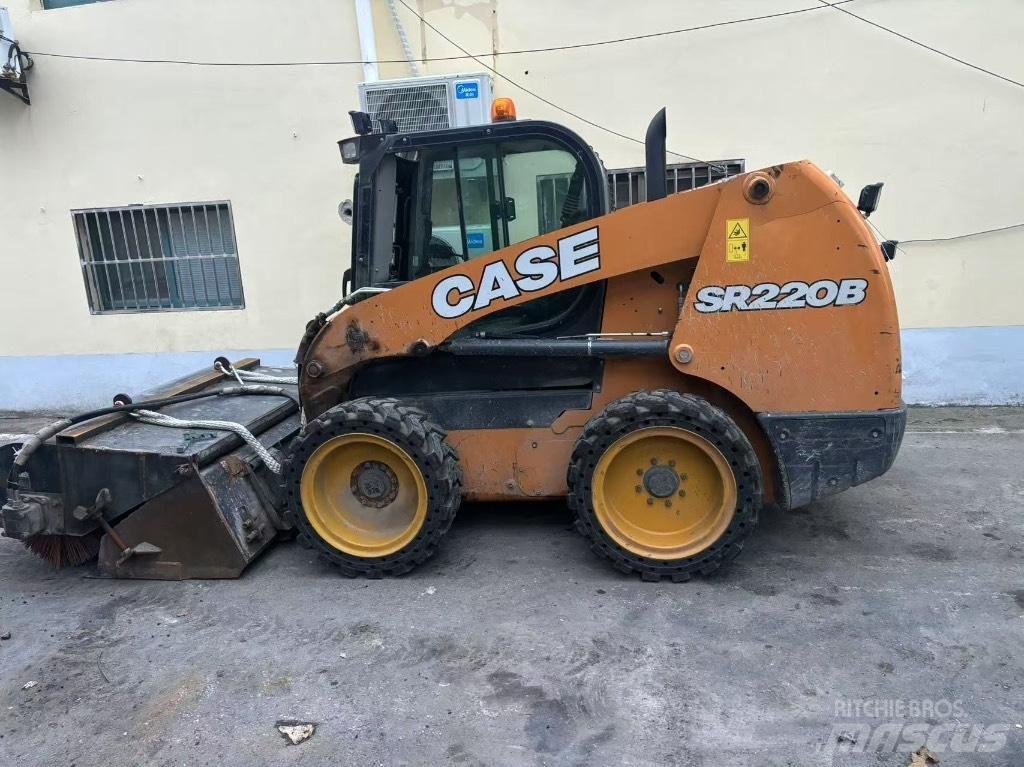

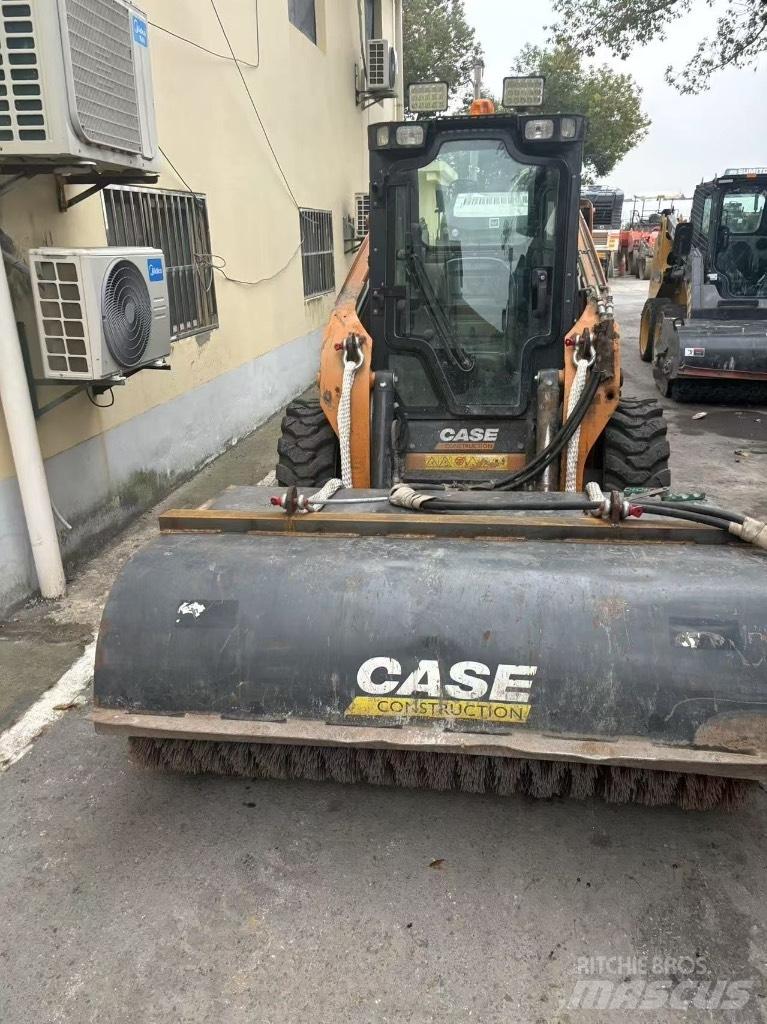

CASE SR 220B Skid Steer Loaders
CASE SR 220B Skid Steer Loaders
CASE SR 220B Skid Steer Loaders
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Category
Skid Steer Loaders
Brand / model
Case SR 220B
Year
2020
Hours
3,000 h
Condition
New/unused
Country
China
General grade
1
2
3
4
5
Mascus ID
82DBC6C0

PRICING

Select Currency

DETAILS

Power type
Diesel
Undercarriage condition
perfect
Amount of previous owners
0
Gross weight
7,716 lbs
Maximum lift capacity
3,748 lbs
Body type
Fixed frame
Cabin type
Enclosed cab
Emission level
Stage IIIA / Tier IV interim
Engine
CASE
Bucket capacity
0.50 m3
Engine power
82.9 hp (61 kW)
Engine manufacturer
CASE
Top speed
30 km/h
Original color
yes
Carrier type
Wheeled
Condition Info/Guarantee
perfect
Front tires / undercarriage remaining
100
Rear tires remaining
0
Production country
United States
Delivery terms
CIF, EXW
Accessories
Air conditioning
Additional hydraulics
Machine control system
Fire suppression system
Show more
Additional information
The main parameters of the Kais SR220B skid steer loader are as follows: Rated loading capacity: 1000kg one Overturning load: 1996kg one Whole machine weight: 3350kg one Bucket lifting force: 38.2kN one Lifting force of boom: 27.2kN one Standard bucket capacity: 0.41-0.55m ³ one Walking mode: tire type one Engine model: Case 432T/M3 one two Engine type: Diesel direct injection one two Rated power: 61kW/2500rpm one Maximum torque: 305N · m/1400rpm one Displacement: 3.2L one two Hydraulic system: Hydraulic pump flow rate 85L/min, rated working pressure 21Mpa one Transmission system: In the form of a drive motor, the maximum driving speed is 7.2km/h (forward) and 11.9km/h (backward) one Tire size: 12 × 16.5 one Fuel tank capacity: 96.5L one Hydraulic oil tank capacity: 22.4L one Engine oil capacity: 10L one Machine dimensions: total length (with bucket) 3600mm, total length (without accessories) 3000mm, total width 1785mm, total height 2000mm, wheelbase 1300mm, wheelbase 1500mm, minimum ground clearance 200mm, bucket width 1830mm one These parameters provide detailed specifications and performance indicators for the Case SR220B skid steer loader, helping users to fully understand the technical characteristics of the equipment.Show more
