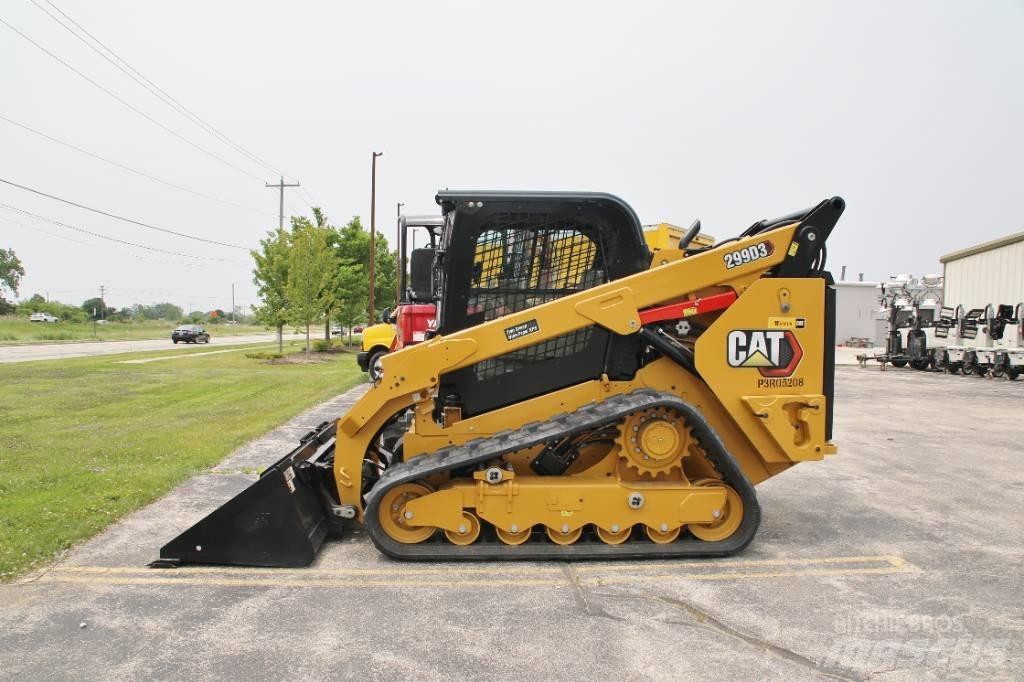

CAT 299D3

Detailed Specifications: Engine: Cat C3.8 DIT (turbo) Gross Power: 110 hp (82 kW) Net Power: 106 hp (79 kW) Peak Torque: 246 lbf-ft (334 N⋅m) at 1,500 rpm Operating Weight: 11,756 lbs (5,332 kg) Rated Operating Capacity (35% Tipping Load): 3,560 lbs (1,615 kg) Tipping Load: 10,170 lbs (4,613 kg) Hydraulic Flow - Standard: 23 gpm (86 l/min) Hydraulic Flow - High Flow XPS: 32 gpm (121 l/min) Ground Contact Area (400 mm/15.7 in track): 2,184 in² (1.41 m²) Ground Pressure (400 mm/15.7 in track): 5.2 psi (35.6 kPa) Length (Track on Ground): 69.6 in (1,767 mm) Overall Length (Track): 89.4 in (2,270 mm) Height (Top of Cab): 83.6 in (2,125 mm) Turning Radius from Center - Coupler: 58.1 in (1,476 mm) Maximum Overall Height: 158.7 in (4,032 mm) Ground Clearance: 9.6 in (245 mm) Departure Angle: 33° Maximum Dump Angle: 54°
