Wacker Neuson SW21

Price excl. VAT

Images5

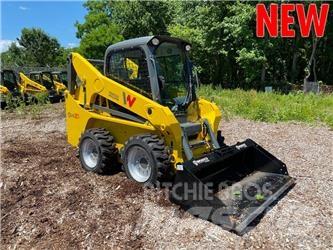

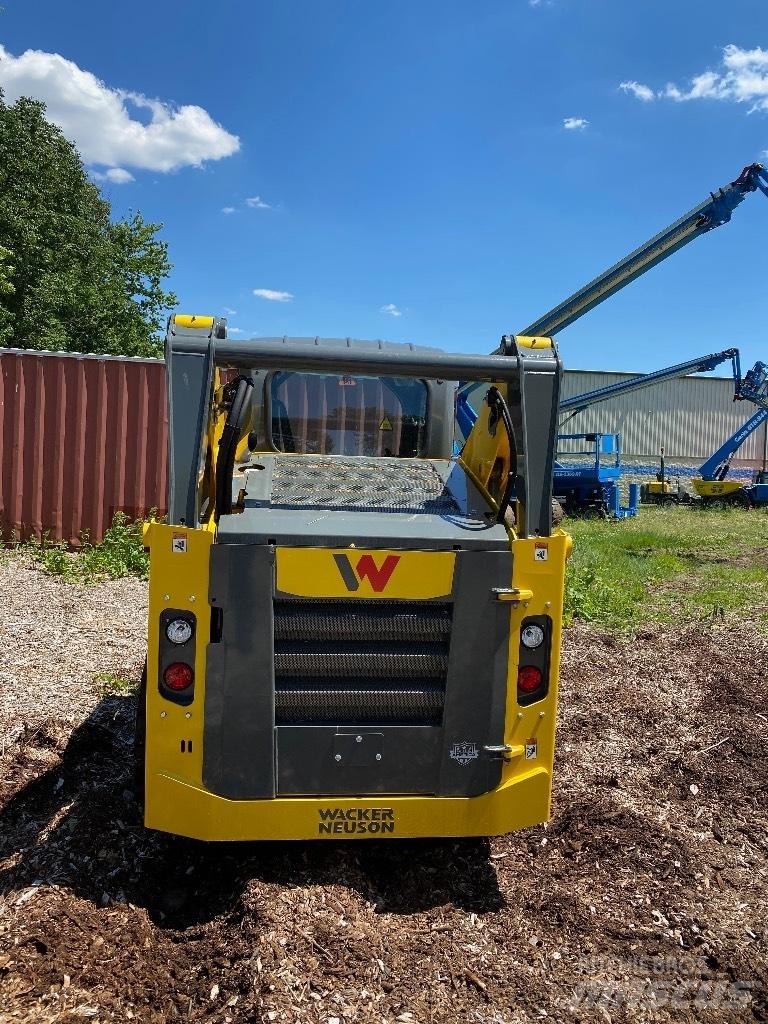

Wacker Neuson SW21 Skid Steer Loaders
Wacker Neuson SW21 Skid Steer Loaders
Wacker Neuson SW21 Skid Steer Loaders
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Category
Skid Steer Loaders
Brand / model
Wacker Neuson SW21
Year
2019
Hours
3 h
Condition
New/unused
Location
Philadelphia, Pennsylvania
Country
United States
Mascus ID
C7E1B874

PRICING

Select Currency

DETAILS

Serial number
WNCS0503UPUM00730
Gross weight
6,512 lbs
Maximum lift capacity
2,100 lbs
Body type
Fixed frame
Emission level
Stage IV / Tier IV final
Engine
Kohler KDI 2504 TCR
Engine power
74 hp (54.4 kW)
Top speed
19.3 km/h
Carrier type
Wheeled
Additional information
BASE MODEL W/ ADDED FACTORY INSTALLED OPTIONS: • AC04 - HYDRAULIC COUPLER • CB05 - CAB TYPE ENCLOSED - HEAT & AC • CP04 - SELECTABLE EH JOYSTICK CONTROLS • DS02 - 2-SPEED DRIVE 8-12MPH • FS01 - FAN VARIABLE SPEED COOLING • FT14 - ONE-WAY HYDRAULIC BUCKET LEVELING • FT17 - RIDE CONTROL • ST01 - SEAT MECHANICAL SUSPENSION • 1000365245 - DELUXE TELEMATICS SW21 Base Skid Steer Information: Operating Data: • Height Top Of ROPS: 81.5" • Overall length w/ bucket: 134.9" • Overall length w/o bucket: 106.6" • Operating weight: 6,512 lb. • Height Hinge Pin Max: 124" • Rated Operating Capacity 50%: 2,100 lb. • Dump reach: 34.1" • Dump height max. at max height: 96.5" • Angle of departure: 24° • Tipping angle (Bucket dump) w/bucket at max height: 42° • Ground clearance: 7.6" • Breakout force max. - Bucket: 5,300 lbf • Breakout force max. - Boom: 5,000 lbf • Width: 65.9" Engine / Motor: • Engine / Motor manufacturer: Kohler • Engine / Motor: KDI 2504 TCR • Engine performance: 74 hp • Fuel tank capacity: 32.8 gal. • Hydraulic System: • Auxiliary Hydraulics - Standard Flow: 20 gpm • Auxiliary Hydraulics - High Flow: 30 gpm • Hydraulic oil tank: 2.9 gal. Power Transmission: • Travel speed: 8 mph (low), 12 mph (high) • Standard tires: 10" x 16.5" Standard Components: • Vertical Lift Arm • 74.3 HP Kohler Tier IV Final diesel engine with maintenance-free after treatment • ROP’s / FOP’s Level 1 Canopy with Side Screens • Mechanical Hand-Foot Controls • 10" x 16.5" All-Terrain Tires • 20.1 gal./min. Auxiliary flow • 2" Seat Belt • 3" Single Color Display • 2 Front single beam working lights • 2 Rear working lightsShow more
