JLG 860 SJ

Price excl. VAT

Compnay LOGO
Images15

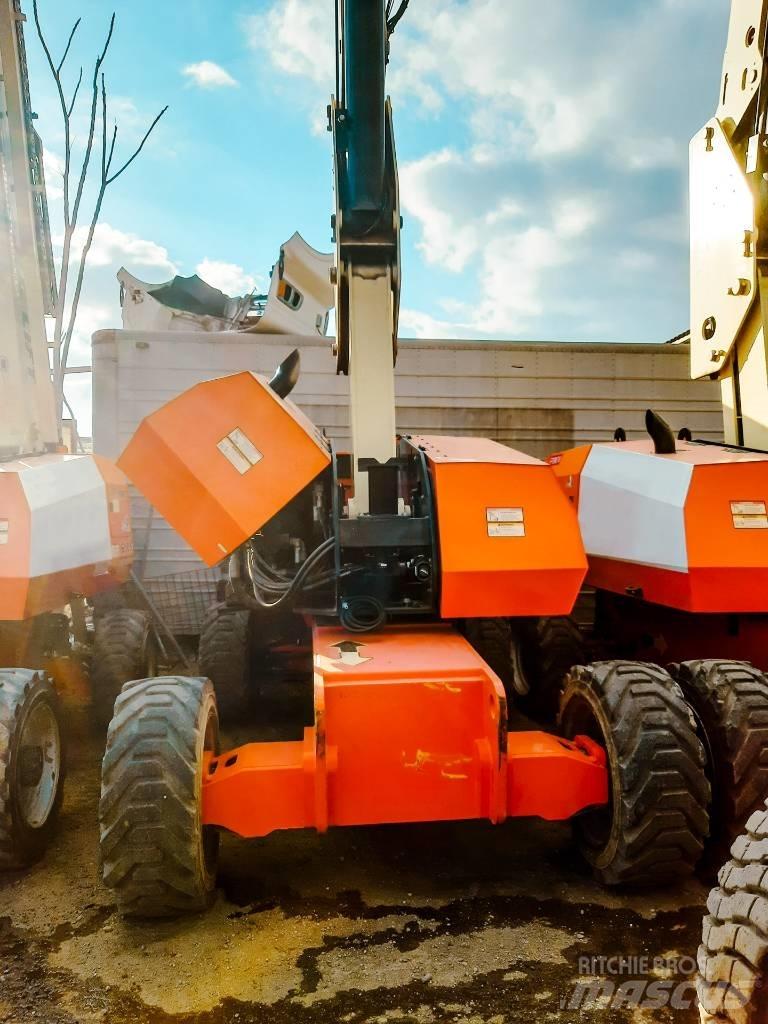

JLG 860 SJ Telescopic boom lifts
JLG 860 SJ Telescopic boom lifts
JLG 860 SJ Telescopic boom lifts
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Category
Telescopic boom lifts
Brand / model
JLG 860 SJ
Year
2013
Hours
4,780 h
Location
Fontana, California
Country
United States
General grade
1
2
3
4
5
Mascus ID
C42B9414

PRICING

Select Currency

DETAILS

Max swing of arm in degrees
360
Engine manufacturer
Deutz
Additional information

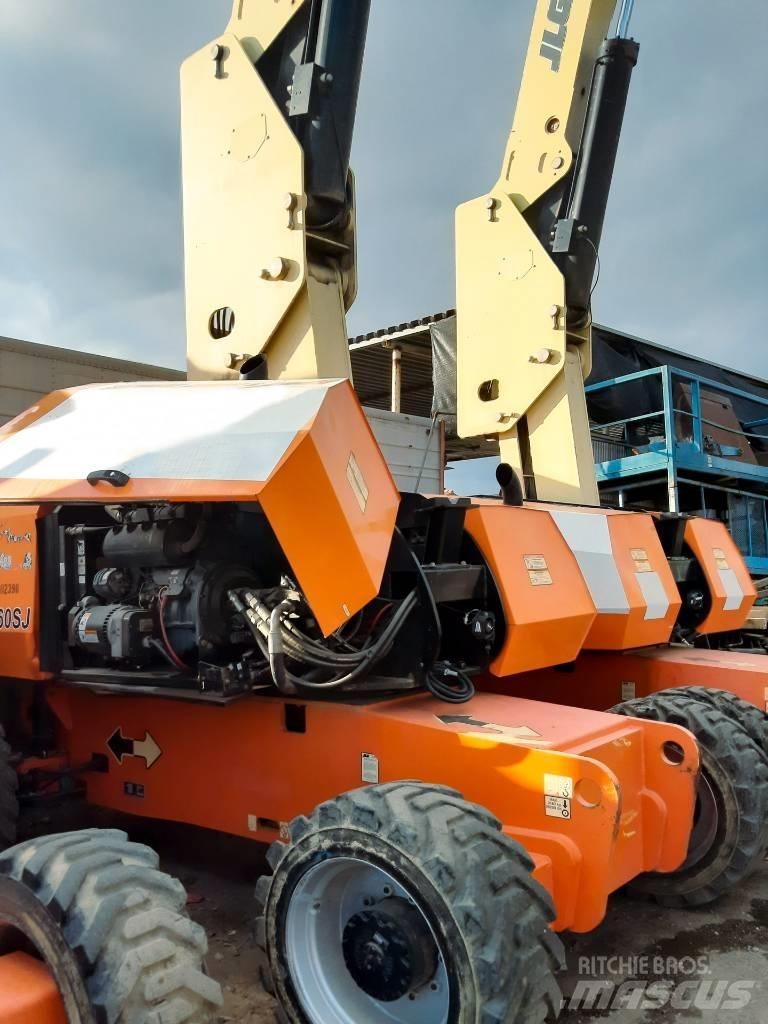

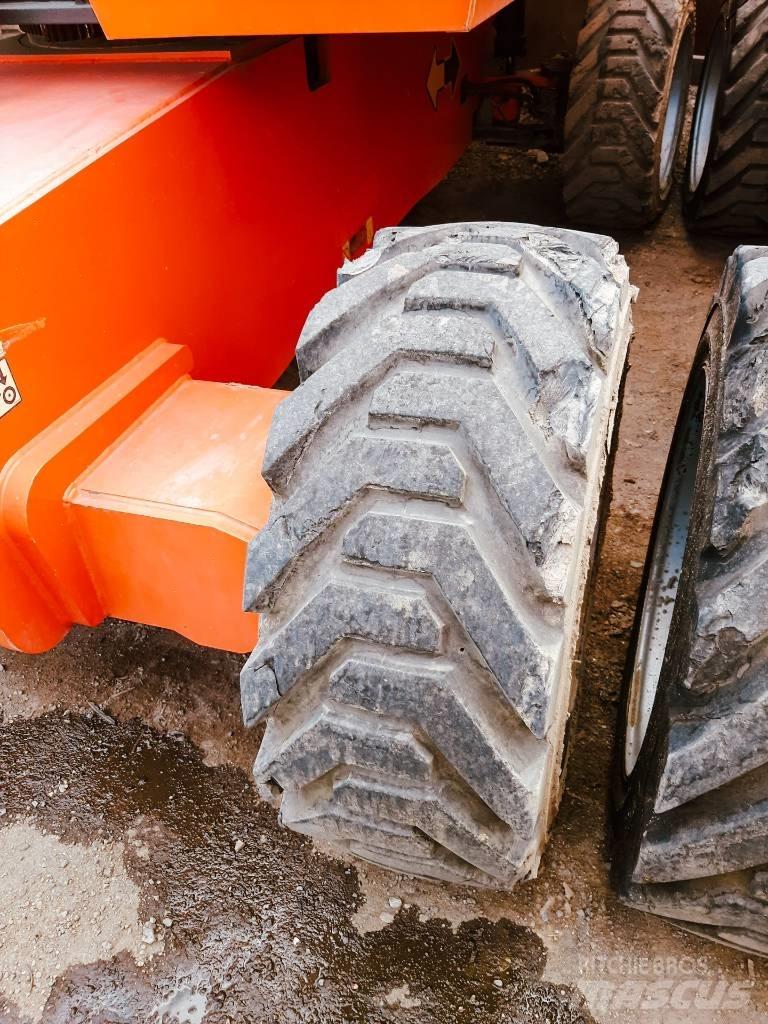

Used JLG 860SJ Telescopic Boom Lift with Deutz Engine and 4780 Hours This JLG 860SJ telescopic boom lift is a used unit with a DEUTZ engine and 4780 hours of use. It features a 240V generator, Skypower, air compressor hookup, and foam-filled tires, providing reliable and versatile operation in a range of applications. With a maximum platform height of 86 feet, unrestricted platform capacity of 500 pounds, and horizontal outreach of 75 feet, this boom lift is well-suited for a variety of construction, maintenance, and repair tasks. Additionally, it has a 31-gallon fuel tank, 48-gallon hydraulic reservoir, and a ground clearance of 11 inches. The JLG 860SJ also has a continuous 360-degree swing, 130-degree jib articulation range, and 45% gradeability in 4WD mode. Measuring 40 feet in length, 8 feet 2 inches in width, and 10 feet in height, it has a tailswing of 4 feet 8 inches and a turning radius of 19 feet 8 inches. The machine weighs 36,888 pounds and has a maximum ground bearing pressure of 81 psi or 5.67 kg cm2. The JLG 860SJ is an ideal choice for those looking for a reliable and versatile telescopic boom lift that can handle demanding tasks. (NOTE: AVAILABLE ONLY VIA APPOINTMENT. PLEASE GET IN TOUCH AND SCHEDULE AN APPOINTMENT.) POWER SOURCE: -Auxiliary Power: 12 Volts DC -Capacity - Fuel Tank: 31 gal. / 117.35 L -Engine Type - Diesel: DEUTZ TD 2.9L Tier 4 Final 67 hp PERFORMANCE: -Axle Oscillation: 8 in. -Drive Speed - 2WD: 3.5 mph -Drive Speed - 4WD: 3.5 mph -Gradeability - 2WD: 25% -Gradeability - 4WD: 45% -Platform Capacity - Restricted: 750 lb -Platform Capacity - Unrestricted: 500 lb -Swing: 360 Degrees -Swing Type: Continuous -Turning Radius - Outside: 19 ft 8 in. -Jib - Range of Articulation: 130 Degrees DIMENSIONAL DATA: -Ground Clearance: 11 in. -Machine Height: 10 ft -Machine Length: 40 ft -Machine Width: 8 ft 2 in. -Platform Dimension A: 3 ft -Platform Dimension B: 8 ft -Tailswing: 4 ft 8 in. -Tire Size: 15-625 Foam Filled Lug Tread REACH SPECIFICATIONS: -Horizontal Jib Rotation: 0 Degrees -Horizontal Outreach: 75 ft -Platform Height: 86 ft GENERAL: -Capacity - Hydraulic Reservoir: 48 gal. -Maximum Ground Bearing Pressure: 81 psi -Machine Weight: 36888 lbShow more

ReQuip Corporation

16516 Washington Dr 92335 Fontana California United States
