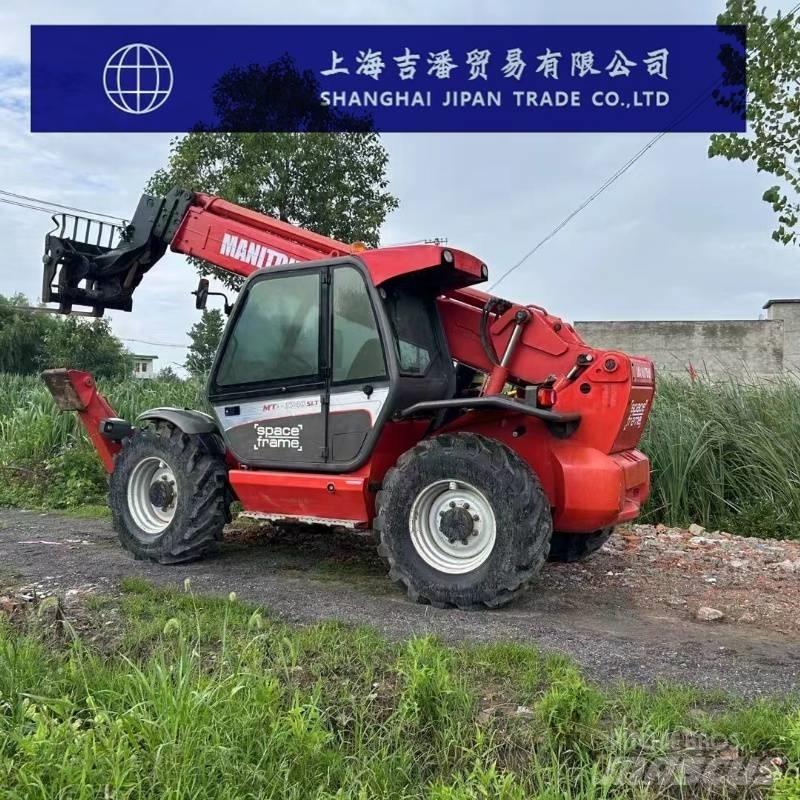

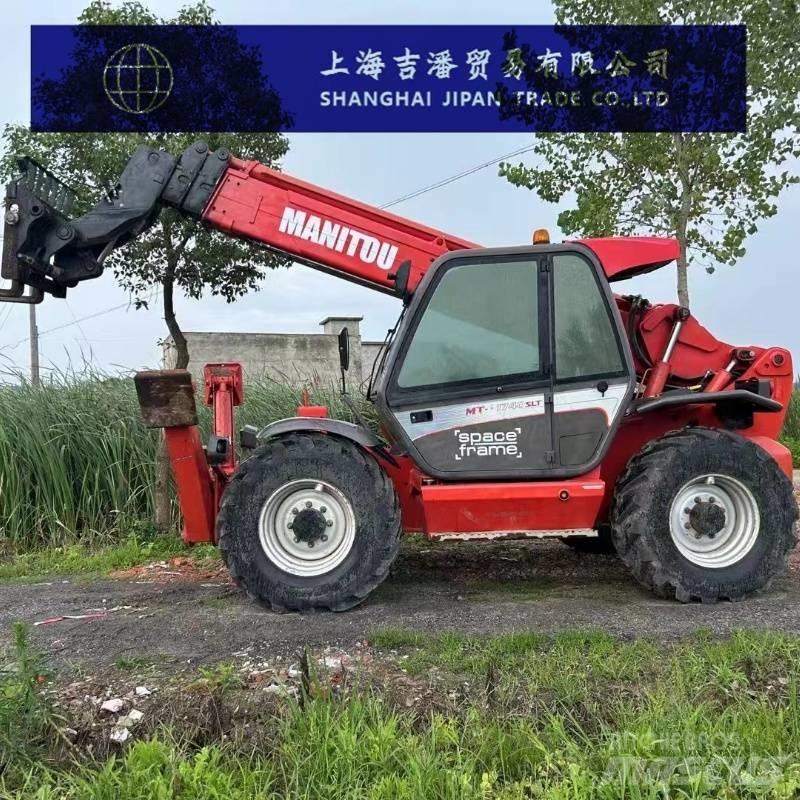

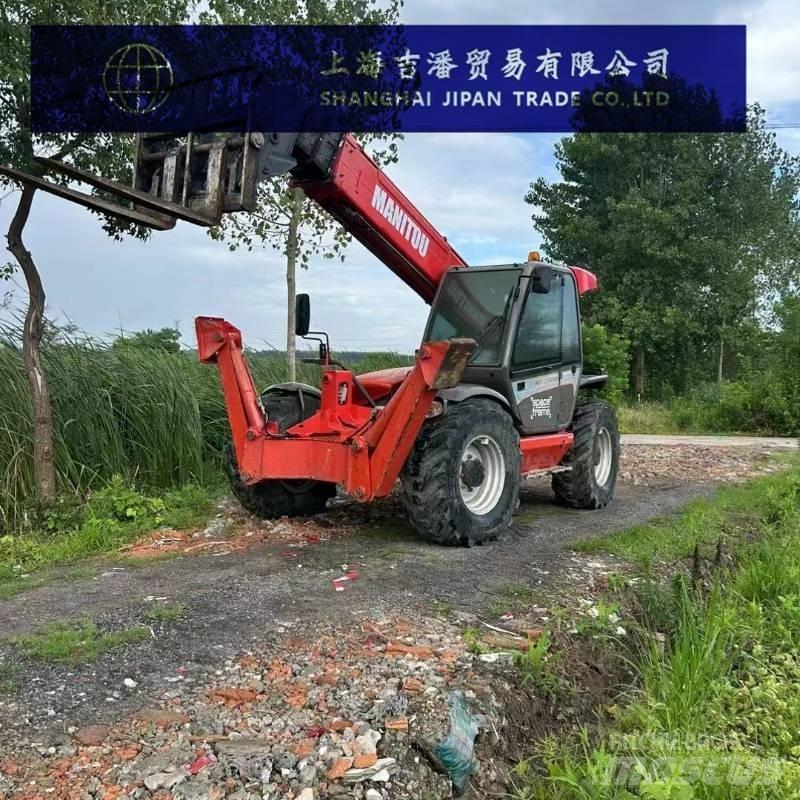

Manitou MT 1740 SL T

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Basic performance Engine power (kW)74.5/2200 Operating weight (in kilograms) : 11,220 Rated load (kg) : 4000 More than 100 horsepower The maximum load (in kilograms) is over 3,500 kilograms Job parameters Maximum lifting capacity (kg) : 4000 The lifting Angle range is from the lowest to the highest (°)-0.028967254 Maximum lifting height (m) : 16.65 Maximum external elongation (m)12.35 The maximum external elongation overturning load (kg) is 957 Turning radius (m) : 5709 Engine Model: Perkins 1104D-44T Rated power (kw/rpm)74.5/2200 Maximum torque (N.m) : 412/1400 Displacement (L) : 4.4 Hydraulic system The maximum working pressure of the system (bar) is 260 The maximum system flow rate (L/min) is 196 Transmission system Gear 4 Maximum driving speed (km/h) : 25 Tire size: 440/80-24 Oil capacity Fuel tank (L)135 Oil tank (L)11 Engine coolant (L)18.5 Transmission fluid (L)16 Hydraulic system (L)175 Overall dimensions The total length of the entire machine is 7180 mm The total length of the entire machine is 5980 mm The full width of the entire machine (mm) is 2425 The total height of the entire machine (mm) is 2785 Cab height (mm) : 2605 The height of the steering wheel from the ground is 1880 mm Wheelbase (mm) : 2770 Track (mm)1990 Ground clearance (mm) : 480 Departure Angle (°) : 50
