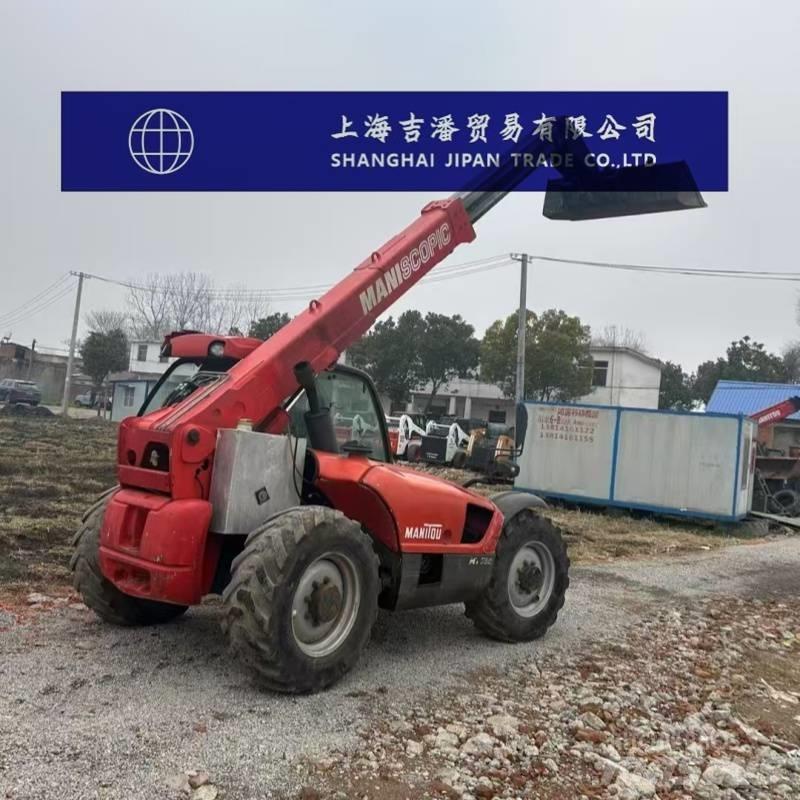

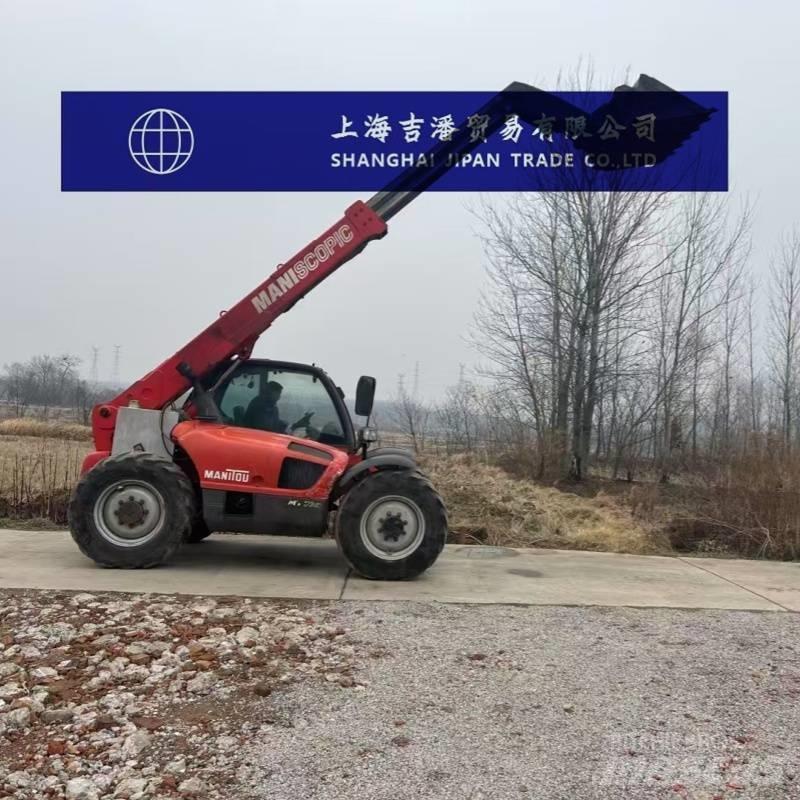

Manitou MT 732
Price excl. VAT
40,000 USD
Print
INFO
Category
Telescopic Handlers
Brand / model
Manitou MT 732
Year
2013
Hours
3,322 h
Country
China
General grade
1
2
3
4
5
Mascus ID
06AD8EBF
PRICING
Select Currency
USD
Price Excluding Tax
40,000 $
DETAILS
Power type
Diesel
Type
Rotating
Traction
4x4
Date of latest inspection
2025-02-12
Amount of previous owners
1
Gross weight
15,984 lbs
Maximum lift capacity
7,716 lbs
Registration number
1
Maximum lift height
22.6 feet
Cabin type
Enclosed cab
Emission level
Stage V / Tier V

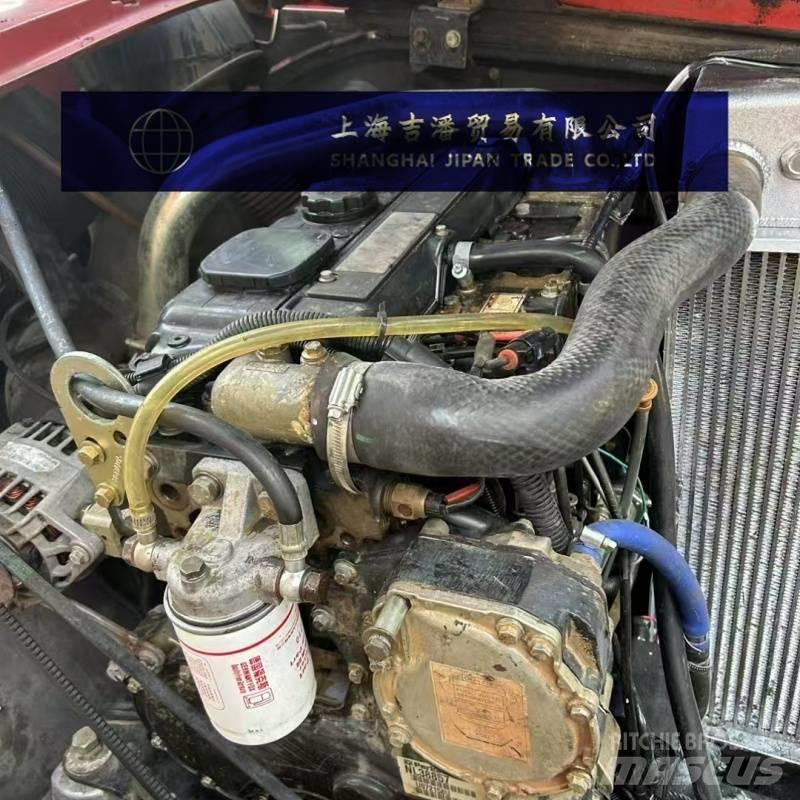

Engine
1104C-44
Body type
Fixed frame
Engine power
83.6 hp (61.5 kW)
Engine manufacturer
Perkins
Transmission
Original
Engine displacement
4,400 cm3
Tire size
Original
Original color
Original
Output of the auxiliary hydraulics
105 l/min
Transport dimensions (LxWxH)
234.92 x 187.68 x 100.39 inches
Reach at max load
13.7 feet
Condition Info/Guarantee
1 Year
Front tires / undercarriage remaining
98%
Rear tires remaining
2%
Production country
France
Delivery terms
FCA, FOB, CFR, CIF, EXW
Certificates
EPA, CE
Accessories
Additional information
曼尼通MT732伸缩臂叉车 参数配置
基本性能
发动机功率(kW)61.5/2200
操作重量(千克)7250
额定载荷(kg)3200
马力(马力)100马力以下
最大载荷(公斤)3500公斤以下
作业参数
最大提升能力(kg)3200
举升角度范围 最低/最高(°)-0.047619048
最大提升高度(m)6.9
最大外伸长(m)4.16
卸载距离(最大高度处)(mm)1.15
最大外伸长倾翻载荷(kg)1620
转弯半径(m)4805
发动机
型号珀金斯Perkins 1104C-44
额定功率(kw/rpm)61.5/2200
最大扭矩(N.m)302/1400
排量(L)4.4
液压系统
系统最大工作压力(bar)240
系统最大流量(L/min)105
传动系统
轮胎尺寸400/80-24 156 A8 TL
油类容量
燃油箱(L)120
机油油箱(L )10.5
发动机冷却液(L)18.5
变速箱油(L)15.5
液压系统(L)125
外形尺寸
整机全长(mm)5967
整机全长(mm)4767
整机全宽(mm)2261
整机全高(mm)2550
驾驶室高(mm)2300
方向盘离地高(mm)1690
轴距(mm)2560
轮距(mm)1846
离地间隙(mm)440
离去角(°)53
