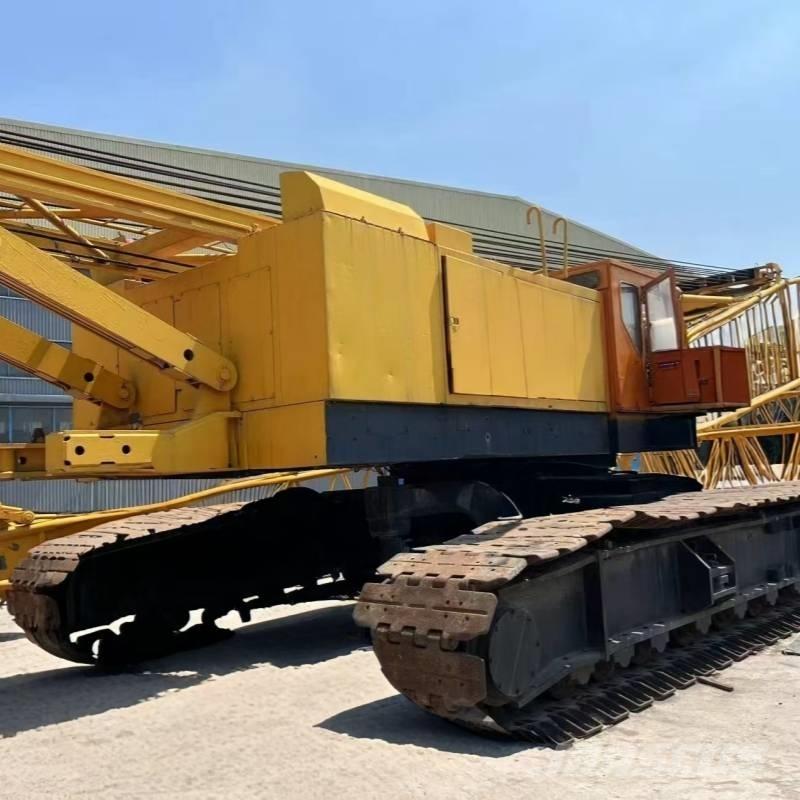

IHI CCH 1500
Price excl. VAT
Print
INFO
Category
Crawler Cranes
Brand / model
IHI CCH 1500
Year
1996
Hours
7,577 h
Country
China
General grade
1
2
3
4
5
Mascus ID
C965F707
PRICING
Select Currency
DETAILS
Boom type
Lattice
Date of latest inspection
2025-09-10
Amount of previous owners
1
Gross weight
284,396 lbs
Maximum lift capacity
330,693 lbs
Max lifting capacity at end of jib
44,092 lbs
Boom length
187 feet
Emission level
Stage V / Tier V
Min boom length
9.84 feet
Min luffing jib
9.84 feet
Jib length of crane
187 feet
Maximum lift height
197 feet
Crane type
Fixed jib
Original color
Orginal
Engine manufacturer
Orginal
Carrier type
Tracked
Condition Info/Guarantee
1 Year
Front tires / undercarriage remaining
98
Rear tires remaining
2
Production country
Japan
Delivery terms
FCA, FOB, CIF, EXW
Certificates
EPA, CE
Accessories
Hook blocks
Additional information
基本参数:
最大起重量:150 吨
最大起重力矩:暂无相关数据
整机重量(含 18m 臂):约 152.6 吨
动力系统:
发动机型号:日野 EF750 型
额定功率:275PS(约 202kW)/2000rpm
排量:16.745L
燃料箱容量:440L
性能参数:
回转速度:0.5-2.3rpm(无级变速)
行走速度:1.2/0.7km/h
爬坡能力:30%(16.7°)
平均接地比压:0.85kgf/cm²
起升机构:
主起升速度(空载 / 满载):100/60m/min
副起升速度(空载 / 满载):50/30m/min
主卷筒钢丝绳直径:26mm
副卷筒钢丝绳直径:26mm
臂长参数:
基本臂长:18m
最长主臂:72m
最长副臂:31m
最大臂长组合:72m 主臂 + 31m 副臂 = 103m
外形尺寸:
长度(折叠时):7.52m
宽度:4m(展开时)、2m(运输时)
高度:3.735m
