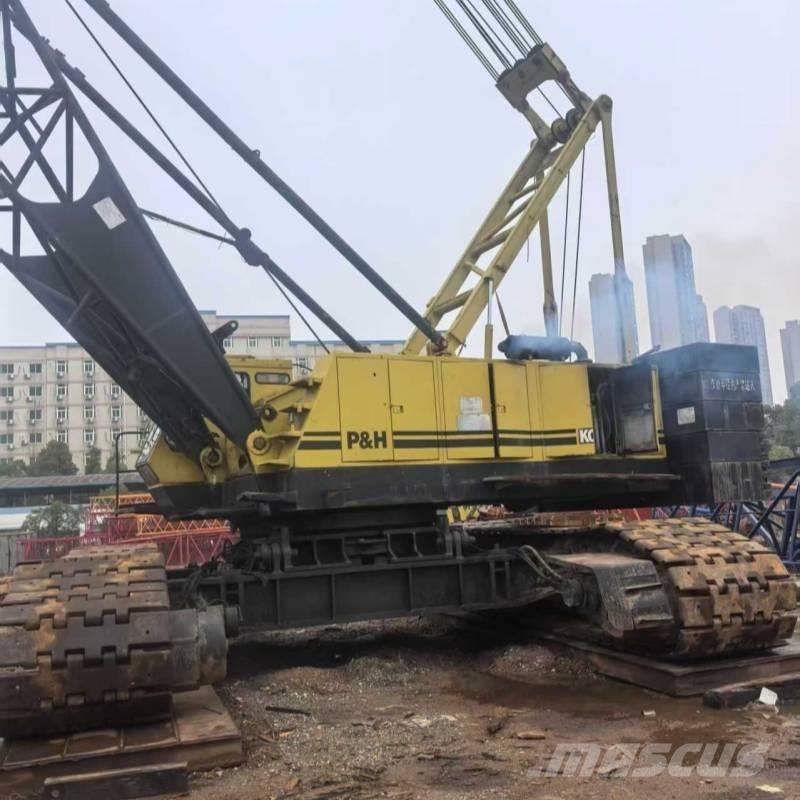

Kobelco 7150
Price excl. VAT
Print
INFO
Category
Crawler Cranes
Brand / model
Kobelco 7150
Year
1996
Hours
8,587 h
Country
China
General grade
1
2
3
4
5
Mascus ID
9BCDB899
PRICING
Select Currency
DETAILS
Boom type
Lattice
Date of latest inspection
2025-09-15
Amount of previous owners
1
Gross weight
240,304 lbs
Maximum lift capacity
330,693 lbs
Max lifting capacity at end of jib
44,092 lbs
Boom length
210 feet
Emission level
Stage V / Tier V
Min boom length
9.84 feet
Min luffing jib
9.84 feet
Jib length of crane
220 feet
Maximum lift height
226 feet
Crane type
Fixed jib
Original color
Orginal
Engine manufacturer
Orginal
Carrier type
Tracked
Condition Info/Guarantee
1 Year
Front tires / undercarriage remaining
98
Rear tires remaining
2
Production country
Japan
Delivery terms
FCA, FOB, CIF, EXW
Certificates
EPA, CE
Accessories
Hook blocks
Additional information
基本参数:
最大额定起重量:150t
发动机额定功率:216kW/2000rpm
总排气量:11149cc
整机重量:约 150t
尺寸参数:
外形尺寸(长 × 宽 × 机棚高):8155×6820×3770mm
性能参数:
主臂长度:18.29-82.30m
副臂长度:12.19-30.48m
回转速度:高速 2.2rpm,低速 1.1rpm
行走速度:高速 1.2km/h,低速 0.6km/h
爬坡能力:30%(16.7°)
主卷扬单绳速度:90/60/45/30m/min
副卷扬单绳速度:90/60/45/30m/min
主变幅绳速:25×2m/min
配重参数:
配重重量:54t(13.6+10.5+10.8+10.8+8.3)
可选车身重量:20t(10.0+10.0)
可选附加配重:8.3t
噪音参数:
7 米处噪音:77dB(A)
30 米处噪音:65dB(A)
