Link-Belt 218 HSL
Price excl. VAT
On Request
24
Favorite
Share
Save searchPrint
INFO
Category
Crawler Cranes
Brand / model
Link-Belt 218 HSL
Year
2011
Location
Maryland, USA, Maryland
Country
United States
General grade
1
2
3
4
5
Mascus ID
09513A35
DETAILS
Customer asset number
984
Maximum lift capacity
242,508 lbs
Maximum lift height
155 feet
Attachments
https://freecranespecs.com/Link-Belt/218-HSL
Additional information

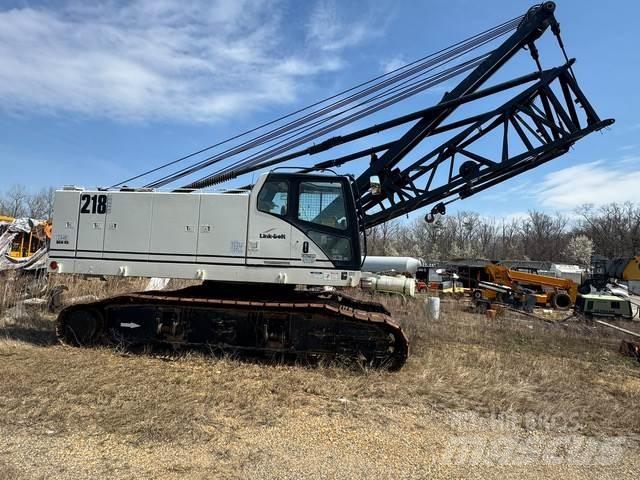

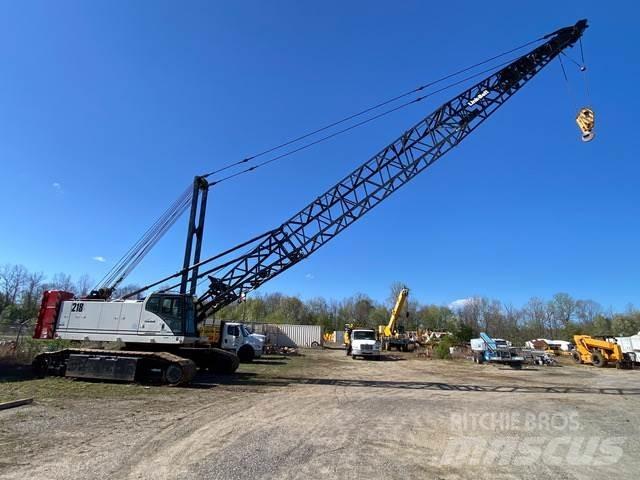

2011 Link-Belt LS218HSL, 110 Ton, Lattice Boom Crawler Crane; CranesList ID: 984,
155' Main Angular Boom consisting of 1-20’ Base, 1-25’ Tip Section, 1-20’ Insert and 3-30’ Inserts with Quick Draw Self-Assembly Cylinder in Base Section,
No Jib,
Main and Auxiliary Winches with 26 mm wire rope and 3rd Drum with 19mm Wire Rope which is Super Structure Mounted,
Drum Rotation Indicator, Power up/down & free-fall operation modes, Rated CapacityLimiter System with Anti-Two Block,
Headache Ball,
Hook Block,

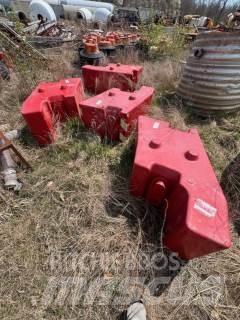

Total combined counterweight, “ABC” plus side frame counterweights is 85,020#, Hydraulically Installed and Removed Track Frame Counterweights,
9' 11" wide Link-Belt Car Body and 12' Retracted Crawlers,
Isuzu 6HKI 6 Cylinder Turbo Diesel Engine,
Hydraulic Extendable Side Frames,
36" Wide Track Shoes - 53 shoes per side frame.
... IN MARYLAND!
