Sany SCA4000A

Price excl. VAT

On Request

Compnay LOGO
Images1

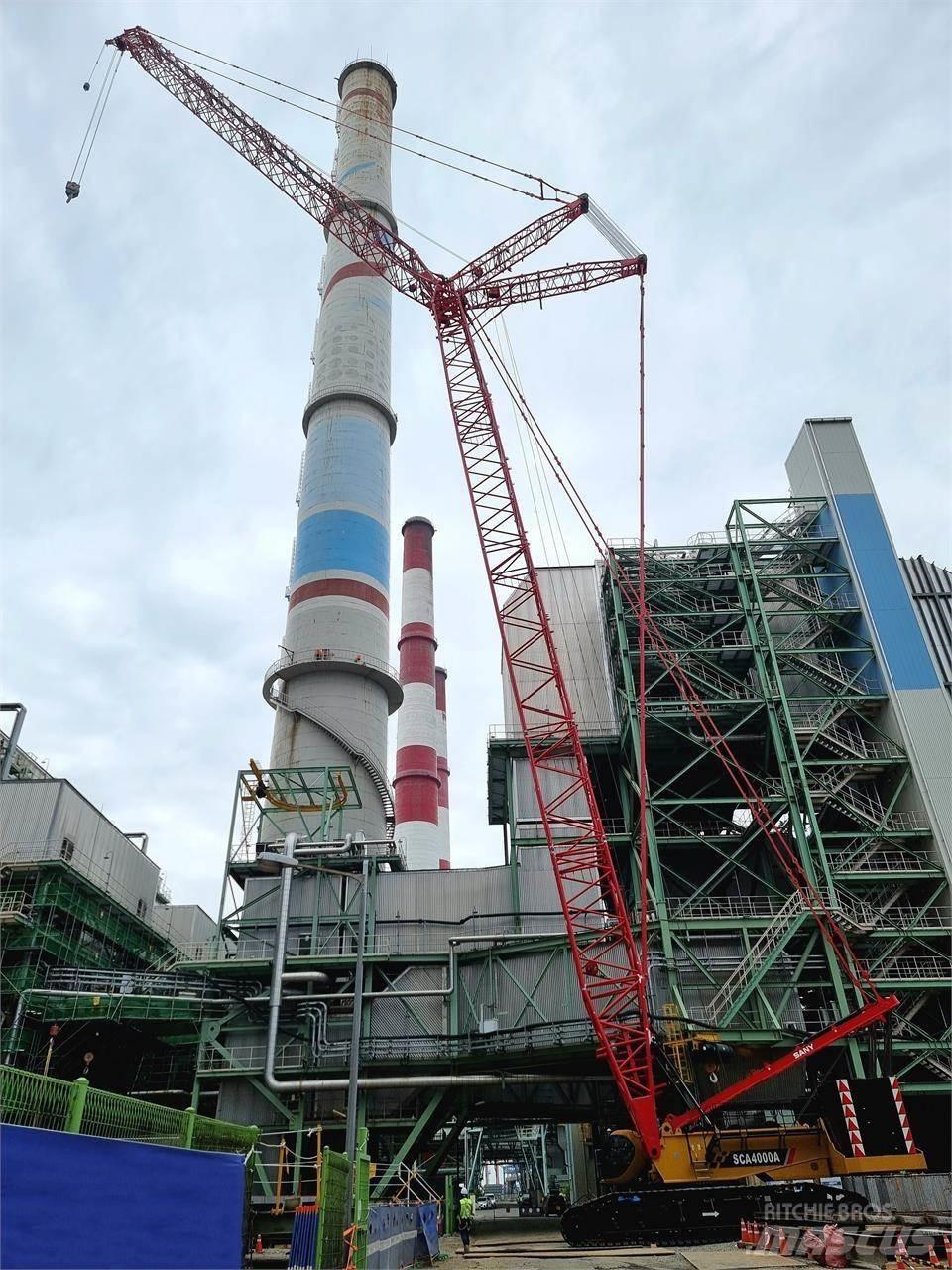

Sany SCA4000A Crawler Cranes
FavoriteFavorite
shareShare
Save searchSave search
Print

INFO

Category
Crawler Cranes
Brand / model
Sany SCA4000A
Year
2022
Location
Tulsa, Oklahoma
Country
United States
Mascus ID
F6371CF3

DETAILS

Additional information
Description: One (1) 2022 New SANY Lattice Crawler Crane model SCA4000A (440-ton US) Complete With standard options including: • H Boom 78.7ft~275.6ft(24m~84m) • HJ Mixed boom 147.6ft~324.8ft(45m~99m) • HJFJ Mixed boom+ fixed jib (236.2ft~295.3ft) +29.5ft (72m~90m) +9m • LJ Boom+luffing jib (118.1ft~196.9ft) +(68.9ft~226.4ft) (36m~60m) +(21m~69m) • FJh Boom+short heavy fixed jib 78.7ft+29.5ft(24m+9m) • Carbody counterweight: 88,180lb (4 Qty) 19' L (5.80m) 5'7'' W (1.70m) 1'9'' H (0.33m) 22,045lb ea. (10mt ea.) • Rear Counterweight: 264,540lb (10t) 12 9'4'' L (2.85) 7'10'' W (2.40) 1'7''H (0.49) 22,045lb (10mt ea.) • Engine: Cummins X12-C400 (US EPA Tier 4 Final) Rated power: 298kW.Rated Speed 2,100rpm Max. output torque: 2,169N·m. Speed at maximum output torque: 1,400rpm. • Operating Weight: The operating weight is about 749,559lb(340t), including the Upperworks, Lower works, rear counterweight of basic machine, carbody Counterweight 78'8''(24m) basic boom and 440UST (400t) hook. • Block: 440UST (400t) hook 440UST (400t) 1 2×9 23,148lb (10.5t) • Block: 286UST (260t) hook 286UST (260t) 1 9 10,582lb (4.8t) • Block: 176UST (160t) hook 176UST (160t) 1 5 8,377lb (3.8t) • Block: 55UST (50t) hook 55UST (50t) 1 1 3,748lb (1.7t) • Ball: 18UST (16t) ball hook 18UST (16t) 1 - 1,984lb (0.9t) • Ground Pressure: The average ground pressure of machine with basic boom is 0.167MPa. • Load Moment Indicator: The proprietary load moment indicator independently Developed by SANY is adopted, which forms a network with other controllers Through CAN bus line, so as to realize safe and reliable control. The load Moment indicator can automatically detect the hoisting weight of the crane and The angle of the boom, and display the rated load capacity, actual load, working Radius, and the allowable height of the hook. The load moment indicator system Consists of a large-screen color display, a host computer, angle sensors, tension Sensors, pressure sensors and other components. • Factory Warranty: 3-year or 3,000-hour Supper Lift: Base unit w/ 123m (403.5ft) boom, extension jib, 9m (29.5ft) heavy fixed jib, 84m + 81m (275.6ft + 265.7ft) luffing jib, superlift masts, full rear, carbody & superlift ctwt, portable hydraulic power pack. BUILD CONFIG H,HJ,HJFJ,LJ,FJh,HDB,HJDB,LJBD, FJhDBShow more
