Sany SCC 550 E
Price excl. VAT
Print
INFO
Category
Crawler Cranes
Brand / model
Sany SCC 550 E
Year
2018
Hours
6,000 h
Country
China
General grade
1
2
3
4
5
Mascus ID
23E778E1
PRICING
Select Currency
DETAILS
Customer asset number
1
Boom type
Lattice
Date of latest inspection
2025-07-07
Serial number
1
Amount of previous owners
1
Gross weight
85,980 lbs
Maximum lift capacity
121,254 lbs
Registration number
1
Max lifting capacity at end of jib
121,254 lbs
Boom length
49.2 feet
Emission level
Stage V / Tier V
Min boom length
9.84 feet
Min luffing jib
36.1 feet
Luffing jib
49.2 feet
Jib length of crane
49.2 feet
Maximum lift height
138 feet
Hook height of crane - horizontal jib
49.2 feet
Hook height of crane - luffed jib
45.9 feet
Original color
Original
Engine manufacturer
Original
Carrier type
Tracked
Condition Info/Guarantee
1 Year
Front tires / undercarriage remaining
98
Production country
China
Delivery terms
FCA, FOB, CIF, EXW
Certificates
EPA, CE
Attachments
Fly Jib ,Hook ,Counter Weight, ETC.
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Accessories
Hook blocks
Additional information
Lifting capacity
Maximum rated lifting capacity: 55 tons
The maximum lifting capacity of the main boom: 55t×3.7m = 203.5t·m
Arm length range
Main arm length: 13-52 meters
Speed parameter
The speed of the main and auxiliary hoisting ropes: The working layer can reach up to 120 meters per minute at the fastest
The speed of the main luffing hoisting rope can reach up to 72 meters per minute at the fastest
Walking speed: 0-1.2km/h
Rotation speed: 0-2rpm
Engine parameters
Output power/rated speed: 154kW/2200rpm
Transportation parameters
Maximum single-piece transportation weight (including the lower arm and the vehicle, without counterweight) : 28.5 tons
Chassis parameters
Working condition chassis dimensions: The outermost width is 4.5 meters and the length is 5.8 meters
Transportation status: Telescopic chassis, can be transported with counterweight, the overall width of the machine is less than 3.4 meters. When transported without counterweights, the main engine weighs less than 29 tons
Average ground pressure: 0.061Mpa
Other parameters
Equipped with ultimate load regulation and electronically controlled proportional speed control, it features excellent controllability of action and smooth operation. It is equipped with functions such as an electronic level, stop action when leaving the machine, and emergency electrical control, and is fully equipped with safety and monitoring devices.

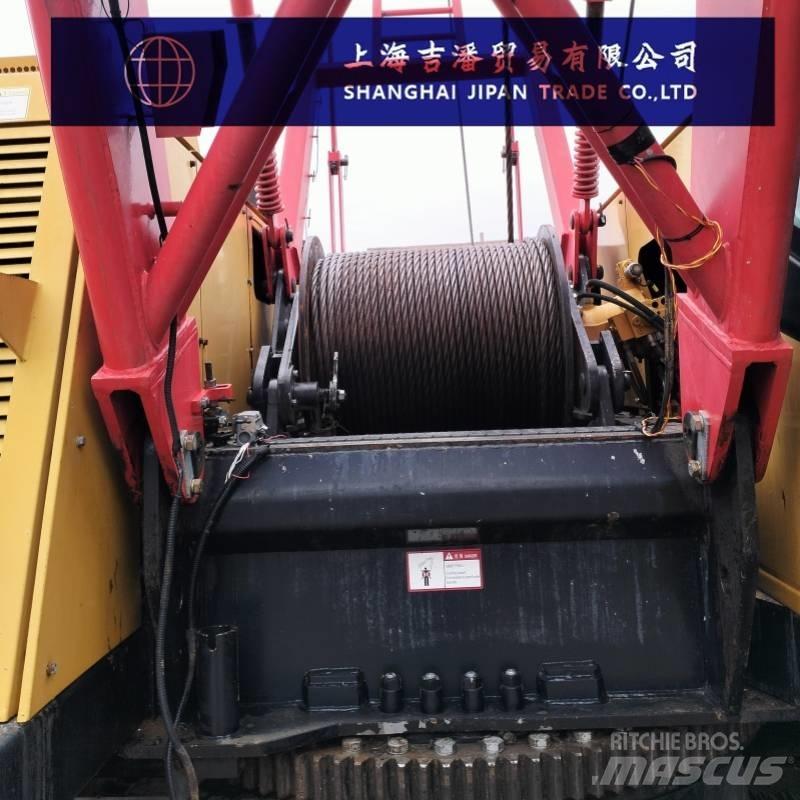

The use of a zigzag reel can effectively prevent the phenomenon of multiple layers of tangled ropes.
The cab is spacious and comfortable, equipped with adjustable seats, a radio and an air conditioning system.
