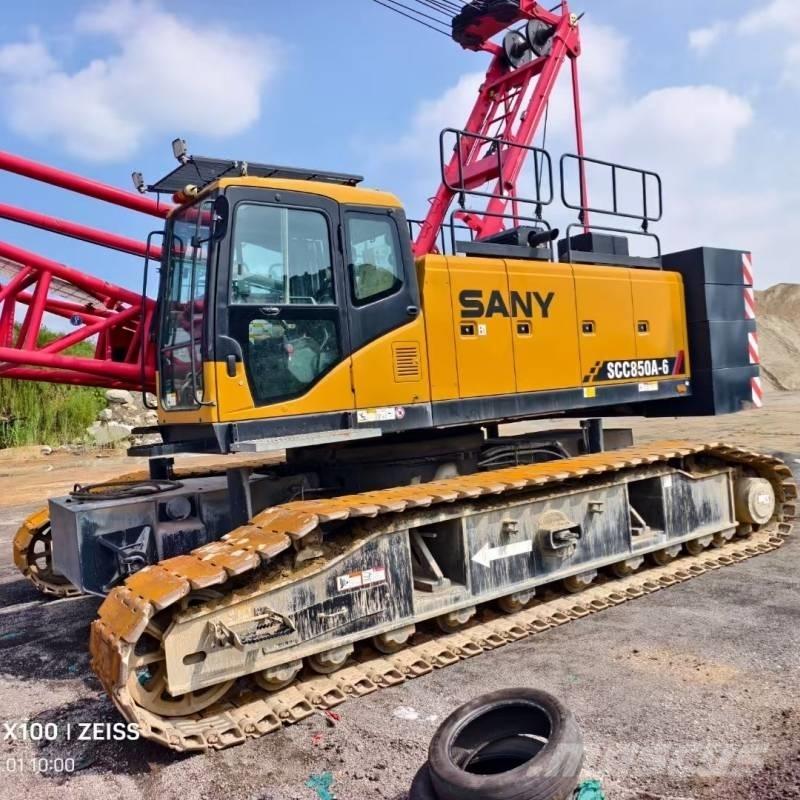

Sany SCC 850 A
Price excl. VAT
Print
INFO
Category
Crawler Cranes
Brand / model
Sany SCC 850 A
Year
2021
Hours
3,455 h
Country
China
General grade
1
2
3
4
5
Mascus ID
A47B2528
PRICING
Select Currency
DETAILS
Boom type
Lattice
Date of latest inspection
2025-09-03
Amount of previous owners
1
Gross weight
130,073 lbs
Maximum lift capacity
187,393 lbs
Max lifting capacity at end of jib
44,092 lbs
Boom length
187 feet
Emission level
Stage V / Tier V
Min boom length
9.84 feet
Jib length of crane
187 feet
Maximum lift height
197 feet
Crane type
Fixed jib
Original color
Orginal
Engine manufacturer
Orginal
Carrier type
Tracked
Condition Info/Guarantee
1 Year
Front tires / undercarriage remaining
98
Rear tires remaining
2
Production country
China
Delivery terms
FCA, FOB, CIF, EXW
Certificates
EPA, CE
Accessories
Hook blocks
Additional information
起重能力:
最大额定起重量:85t
最大起重力矩:350t·m
臂架参数:
主臂长度:12-57m
副臂长度:9-18m
最长主臂 + 副臂:48m+18m
工作速度:
主、副卷扬绳速:0-135m/min
主变幅卷扬绳速(第 3 层):0-55m/min
回转速度:0-2.4rpm
行走速度:0-1.7km/h
发动机参数:
型号:潍柴 WP7(SCC850A-8)
额定功率:221kW/2200rpm(SCC850A-8)
排量:7.47L(SCC850A-8)
尺寸与重量:
主机运输尺寸(带履带架、下节臂):12500×3450×3400mm
主机运输尺寸(不带履带架和下节臂):8450×3000×3100mm
基本臂重量:75t
后配重重量:27.5t
中央配重:9.6t
液压系统:
系统最大压力:33MPa
回转系统压力:22MPa
液压油箱容量:310L
其他参数:
履带板宽度:800mm
平均接地比压(基本臂):0.082MPa
