Dawson EMV 300
Price excl. VAT
On Request
Print
INFO
Category
Vibratory Pile Drivers
Brand / model
Dawson EMV 300
Year
2016
Condition
Reconditioned
Location
Etten Leur, Noord-Brabant
Country
Netherlands
General grade
1
2
3
4
5
Mascus ID
85326125
DETAILS
Customer asset number
455XX
Date of latest inspection
2024-12-12
Amount of previous owners
2
Fits to following machines
12-35t excavators with a minimal oilflow of 130 ltr/min. at 250 bar.
Serial number
455XX
Transport weight
2,127 lbs
Engine manufacturer
Parker hydraulics
Transport dimensions (LxWxH)
39.8 x 24.21 x 47.24 inches
Tire brand
not applicable
Condition Info/Guarantee
warranty expired
Front tires / undercarriage remaining
not applicable
Rear tires remaining
not applicable
Production country
United Kingdom
Delivery terms
EXW
Certificates
CE
Attachments
2m hose bundle and transport frame are included
chain to lift sheet pile is included
Fork and pin or quick hitch connection optionally available
Please note we have multiple units available and pictures might show options which are not included. Call or email us for your specific offer.
Documents
Additional information
The Dawson vibratory hammers are extremely reliable and are easy to install and operate. These high frequency vibratory hammers have a great balance beween weight and performance. The EMV 300 can be used on most excavators in the
class of 12-35t.

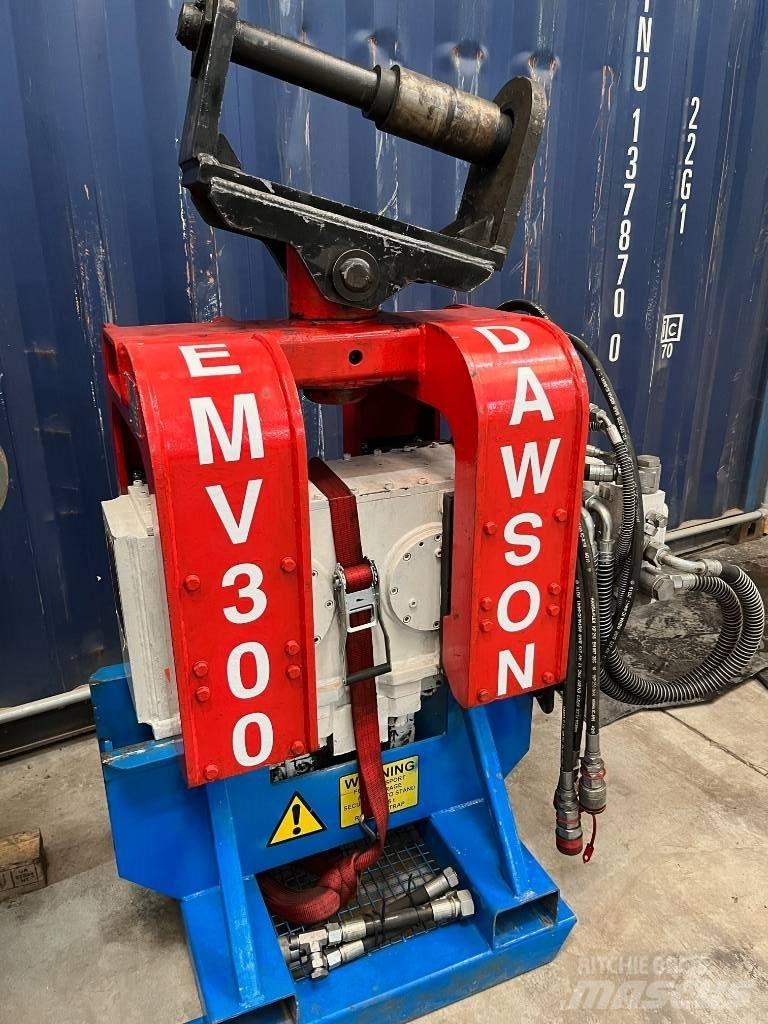

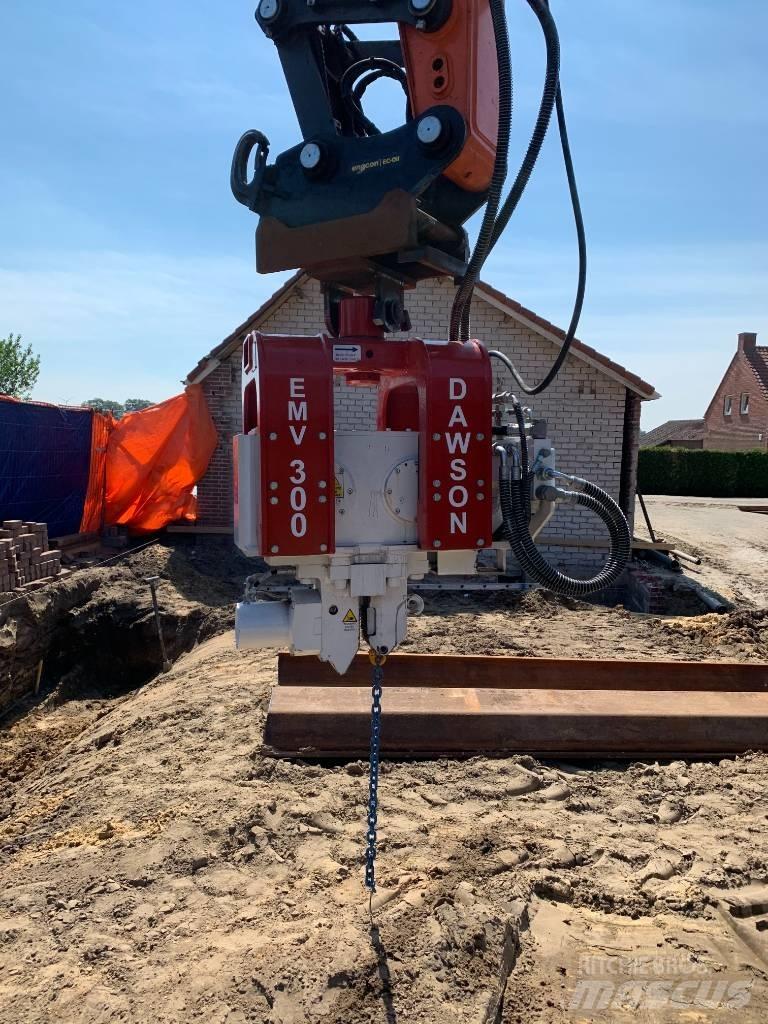

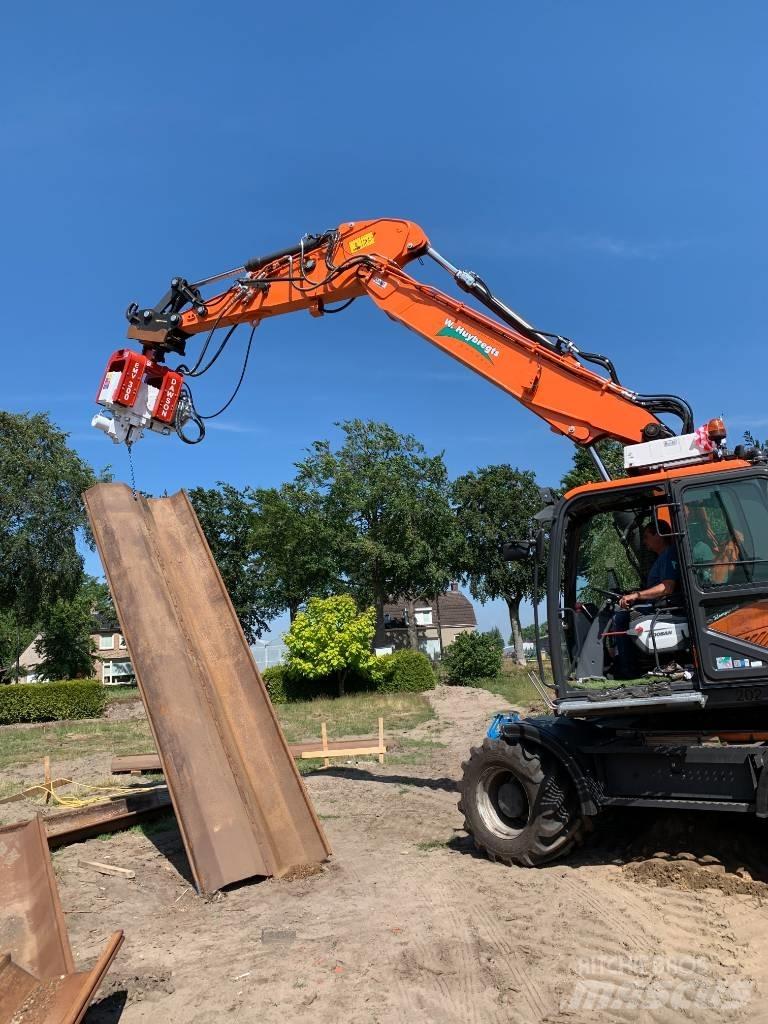

1 piece used unit Dawson EMV 300 excavator mounted vibratory hammer
Year of manufacture 2016
Static moment 4.6 kgm
Frequency 2400 rpm
Centrifugal force 300 kN
Amplitude 14.7 mm
Min. Hydraulic flow rate 130 L/min
Min. Hydraulic flow rate 250 L/min
Max. Hydraulic power 350 bar
Min. Hydraulic power 60 kW
Dynamic mass 925 kg
Total mass 965 kg
Max. pile mass 800 kg +-
Max. pull/push force 15000 kg
Clamp Force 36 ton
Excavator weight class 12-35 ton
