INFO

Category
Vibratory Pile Drivers
Brand / model
ICE 223
Year
1992
Condition
Reconditioned
Location
Etten Leur, Noord-Brabant
Country
Netherlands
General grade
1
2
3
4
5
Mascus ID
B3103FA4

DETAILS

Customer asset number
223-EK
Date of latest inspection
2025-03-01
Amount of previous owners
2
Fits to following machines
This is an ideal vibro to be used with a 30-60t capacity crane
Emission level
Stage II / Tier II
Transport weight
5,732 lbs
Engine manufacturer
DAF XF390
Transport dimensions (LxWxH)
102.95 x 62.6 x 17.32 inches
Production country
Netherlands
Delivery terms
FCA, EXW
Certificates
CE
Attachments
New hydraulic hose bundle of 30 meters Overhauled universal sheetpile clamp IHC FPP20SNZ hydraulic power pack
Additional information

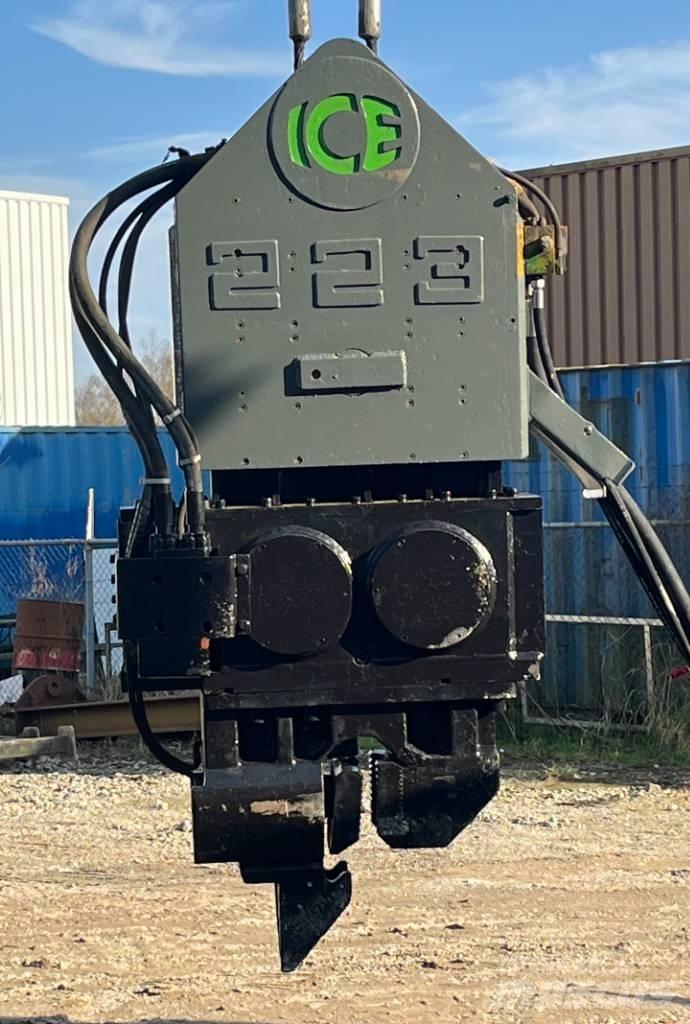

This original ICE 223 (made in the Netherlands) is an interesting vibratory hammer. Due to its compact design the vibratory hammer is light in weight compared to other models with this type of power. The 2 excenter type of construction guarantees a very long life-time and makes it slim as well. This model has an overhauled 75TU clamp and is fitted with new hydraulic hoses. The vibratory hammer is offered with a mulitpurpose IHC power pack which is also suitable to power IHC Hydrohammers, Junttan hammers and different type of rotary heads. The year of manufacture of the power pack is 2004. Eccentric moment 11.6 kgm Max. centrifugal force 670 kN Max. frequency 2300 RPM Max. amplitude 12.6 mm Max. static line-pull 400 kN Max. operating pressure 350 bar Required oil flow 300 l/min. Total weight incl clamp 2.600 kg Year of manufacture 1992 Hydr. Hose bundle new 30m included ICE universal sheetpile clamp includedShow more

Foundiz

Kroonstraat 1 4879 AV Etten-Leur Noord-Brabant Netherlands
