Fabtec 5163/3625

BASIC INFORMATION

CategoryWheel Washers
Brand / modelFabtec 5163/3625
Year2025
LocationCamrose, Alberta
Country
Mascus ID64405346
+ Show more details

PRICING

Price Excluding TaxOn Request

DETAILS

Customer asset number2021-01-FT
Production countryCanada

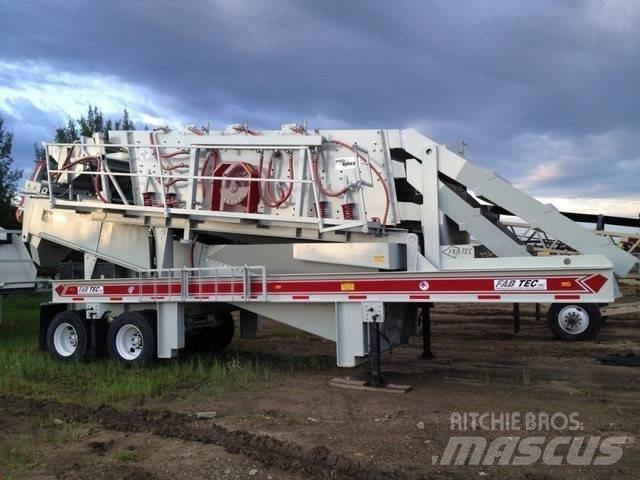

Additional informationPORTABLE FAB TEC 5’ x 16’ – 3 DECK WASH PLANT WITH 36” x 25’ SANDSCREW:

PRO 5’ x 16’ - 3 DECK INCLINE SCREEN:
1. 20 HP TEFC with pivot motor base and power and belt.
2. 3/8" PL side walls.
3. Huck bolted screen decks, constructed of 4" x 3" x 3/8" angle iron and 3" x 2" rectangular tubing, ½" x 3" FB crown bars.
4. AR lined discharge lips.
5. AR lined feed box.
6. Alco high temper isolation springs.
7. 100 MM Torrington spherical bearings designed for shaker screens.
8. Center support tube 9" with ½" wall and 2" thick flanges.
9. FAB TEC cartilage style bearing housings, with heavy duty 1 1/4" wall.
10. Eccentrics with add on weights.
11. 10" WF sub frame 33# with C8" x 13.75# cross members.
12. Standard side tension formed clamp bars and ½" crown bar rubbers.

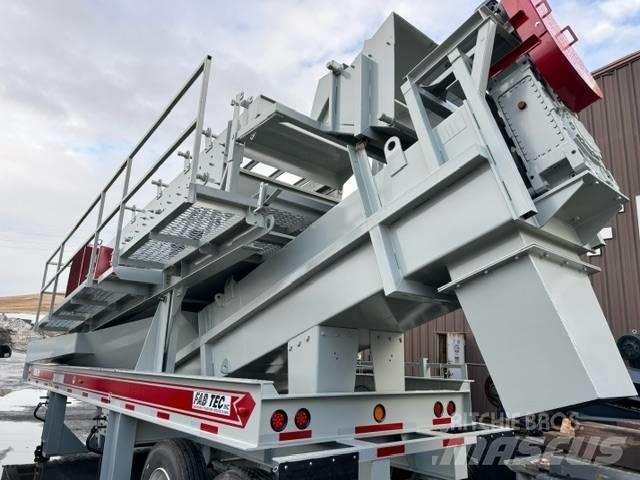

AGGRETEK 36" x 25' SANDSCREW:
1. 15 HP Motor.
2. Oil lubricated heavy-duty gearbox.
3. Replaceable wear plates.
4. 100 TPH MAX. CAPACITY material size 3/8".

(10) SPRAY BAR WASH SYSTEM:
1. 50/50 Brass "Vee Jet" nozzles, 1½" spray bars.
2. Brass individual gate valves for each spray bars.
3. Water manifold with inlet pipe and flange.
4. Rated at 640 GPM at 40 psi.

18" WALKWAYS BOTH SIDES OF SCREEN, BACK 48" PLATFORM, SKYWALK FLOOR, TOE BOARDS, 42" TUBE STEEL HANDRAILS, AND ACCESS LADDER.

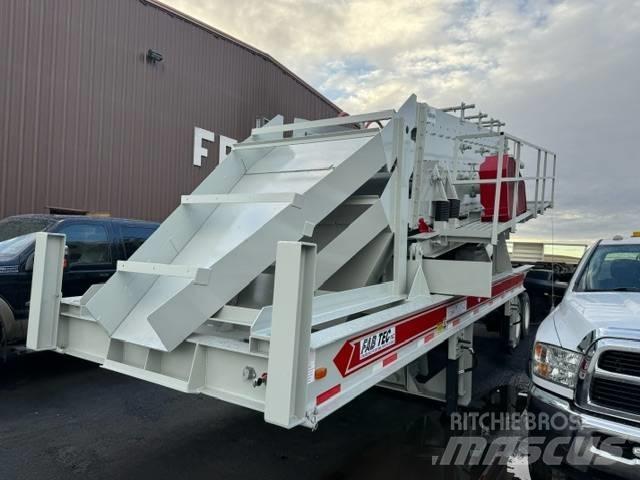

(3) AR LINED DISCHARGE CHUTES WITH EASY ACCESS TO PRODUCT CONVEYOR:
1. Optional blending capabilities offered.
TANDEM AXLE CARRIER 16" WF BEAMS:
1. Hutch 9700 series suspension.
2. 22,500# Standard forge axles.
3. 11:00x22.5 Tires, ten hole piloted hub wheels.
4. Air brakes, LED brake lights, LED marker lights, reflector tape, and mud flaps.

SELF CLOSING SAFETY GATE AT LADDER OPENING.

SAFETY GUARDS, SANDBLASTED CHASSIS, RUST INHIBITOR PRIMER, AND TWO FINISH COATS OF PAINT INCLUDED.

PRODUCT CHUTE BLENDING ON 1ST TO 2ND AND 2ND TO 3RD PRODUCTS:

FEED SLURRY BOX WITH SPRAY HEADS:

ADDITIONAL OPTIONS AVAILABLE:

HYDRAULIC RAISE AND LOWER OF SCREEN AND SLURRY BOX:
1. 12 Volt system.

BINKLEY LANDING GEAR JACKS:
2 LEG
4 LEG

PLUMBING AND FITTINGS FOR "RISING CURRENT" INTO SANDSCREW
