TCM 30
Price excl. VAT
Print
INFO
Category
Diesel Forklifts
Brand / model

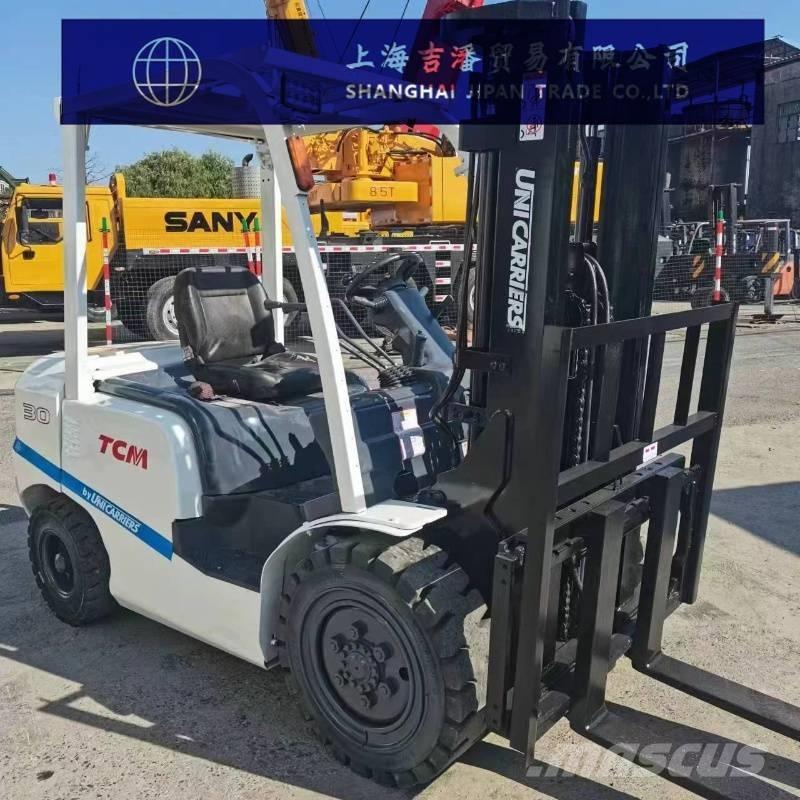

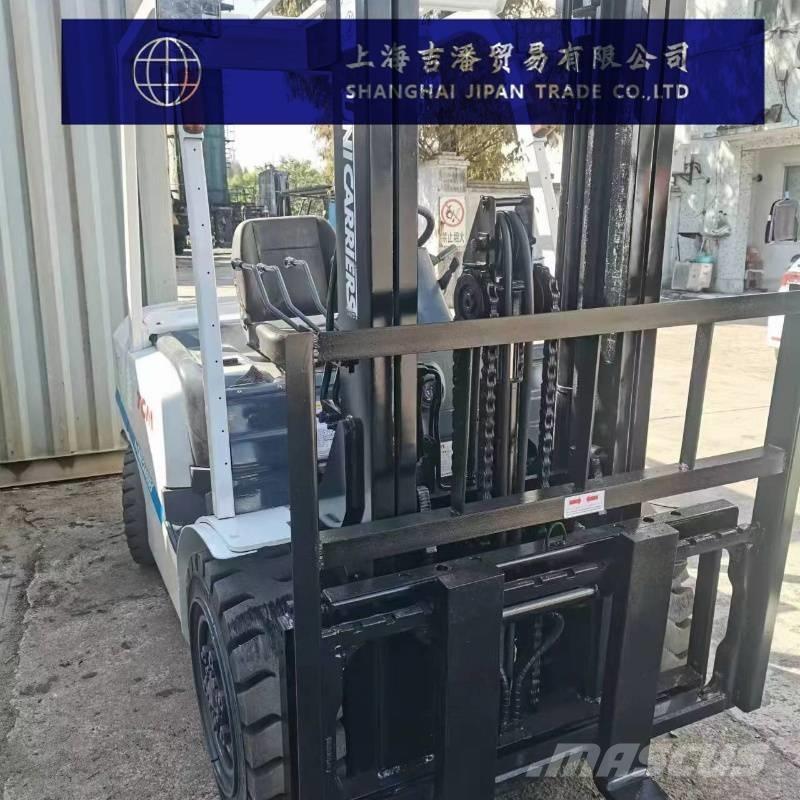

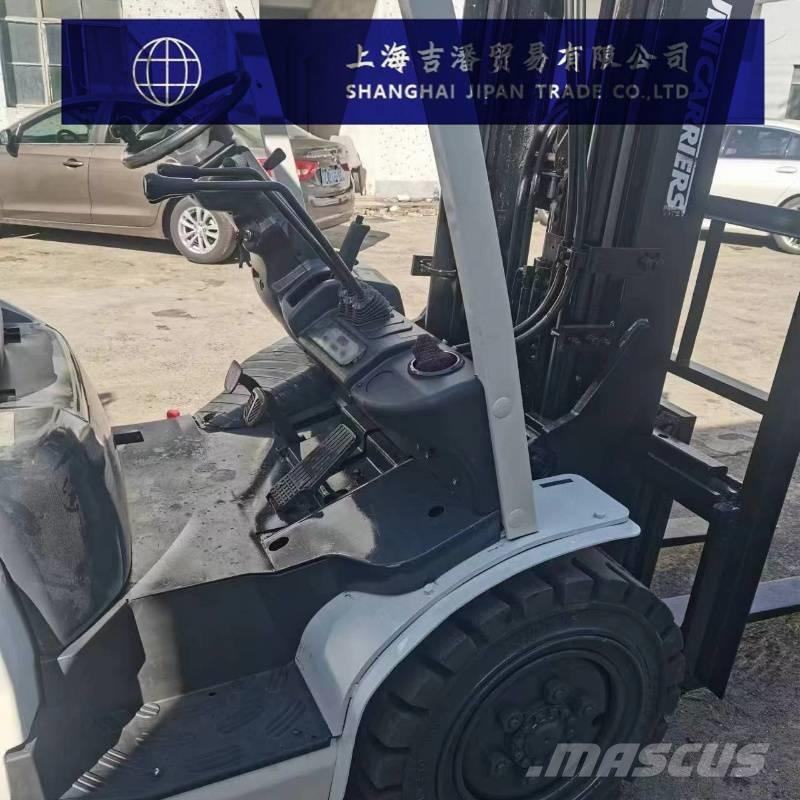

TCM 30
Year
2021
Hours
1,000 h
Country
China
General grade
1
2
3
4
5
Mascus ID
65374BF4
PRICING
Select Currency
DETAILS
Number of wheels
4
Customer asset number
1
Serial number
1
Date of latest inspection
2025-08-15
Amount of previous owners
1
Maximum lift capacity
6,614 lbs
Maximum lift height
118 inches
Free lift
118 inches
Lift mast
Simplex
Load Center
19.7 inches
Condition Info/Guarantee
1 year
Fork carriage
Sideshifter
Tire brand
Original
Tire type
Pneumatic
Fork length
42.1 inches
Cabin
Overhead guard
Transmission
Original
Engine
Diesel
Engine power
50.3 hp (37 kW)
Engine manufacturer
Original
Front tires / undercarriage remaining
98
Rear tires remaining
2
Front tire size
Original
Rear tire size
Original
Transport weight
9,259 lbs
Transport dimensions (LxWxH)
106.5 x 48.23 x 82.28 inches
Production country
Japan
Drive Wheels
1
No. of drive wheels
2
Certificates
EPA, CE
Attachments
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
Accessories
Battery charger
Forklift hook
Additional information
基本性能参数
额定起重量:3000kg
载荷中心距:500mm
最大起升高度:根据不同配置有所不同,如 FD30T3C 型可达 4500mm。也有其他资料显示标准配置为 3000mm。
起升速度:满载时约 450mm/s,空载时约 470mm/s。
行驶速度:满载时前进速度约 18km/h,后退速度约 19.5km/h;空载时前进速度约 20km/h,后退速度约 20km/h。
最小转弯半径:2400mm。
尺寸参数
全长(不含货叉):2705mm
全宽:1225mm
全高(护顶架):2090mm
轴距:1700mm
轮距:前 1000mm,后 970mm
货叉参数
货叉长度:常见为 1070mm
货叉最低位:70mm
发动机参数
发动机型号:尼桑 TD27
额定功率:37kW/2650r.p.m
额定扭矩:148N·m/1800r.p.m
排量:2540cc
燃油箱容量:70L
重量参数
自重:4200kg
