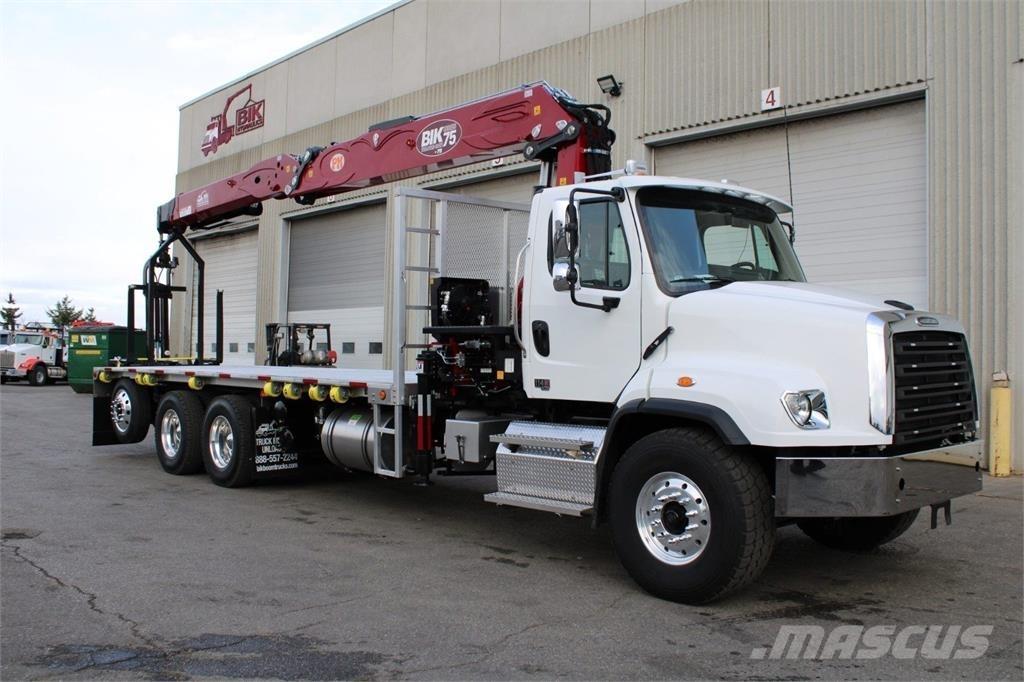

BIK WC 75

Boom Details New – BIK “Wallboard-Crane” Series WC-75 by PM 8th Floor Lift  Installed at rear – Best Capacity in its Class ! 4- Hyd Extensions to 62’ horizontal reach (74’ vertical ) Vertical Boom Capacity: 7,510 lbs – 70’up & 23′ out 5,480 lbs – 65’up & 33′ out Internal cylinders on all boom extensions, Outer boom cylinder guard 360 Degree Continuous (Endless) Rotation and Dual Planetary Gear  Drive Motors – 10 WARRANTY – on Turret Bearing Dual Power Link Connections at Main and Articulating Cylinders, enhanced lifting power throughout Super Xtra Wide Stabilizers – 27’ span , hydraulic out and down type Power Tronic Electronic Safety System  allowing constant crane monitoring & visual display 5-level stabilizer deployment control system  – reduces boom capacity in proportion to shortened stabilizer deployment DANFOSS Valve Manual Boom Levers  – Located on Boom Column & SCANRECO Proportional Radio Remote Control Radio Remote Control includes : 2-batteries, in-cab charger, and back-up cord, Continuous Rotation Kinshoffer Drywall Forks Flanged holding valves, double acting check valve for the down movement of the stabilizers Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom Installed back of cab , with integral sub-frame and specialized torsion bracing to meet or exceed all CMVSS Standards Deck Details New  – 24’4″  x 102” Aluminum Flat Deck:    Installed on top of steel main sill 4” aluminum extrusion deck surface Removable 66” front headboard 8 sliding tie-down winch straps on passenger side Winch bar holder and winch bar Access ladders on Both sides at front Under deck stabilizer pad/cone/chuck holders, reflectors and 5-side lights as required. Truck Details New -2024 Freightliner 114SD 3-Axle Diesel Truck:    79,000 lb GVWR Truck cab white colour 12L Cummins Diesel 500 hp Eaton Ultrashift Plus Automated 18spd trans. 20,000 lb fronts with 425/65R22.5 Front Floatation tires on Alum rims 46,000 LB Rears on Tuftrac Susp with 11R22.5 tires on Aluminum rims 13,000 lb self steer tag axle behind t/a with low profile 22.5” tires on Alum rims double frame chassis 54” spread at tandems, 278” wb Truck Features Include: Two Stage Engine Brake, Air Cond., AM/FM stereo, cruise, tilt/tele steer column, power windows/locks, chrome bumper and grill, power & heated mirrors, eng block heater, painted ext visor, trailer air tow package, rear wheel lock ups, 80 gal alum fuel tank, etc Also Included : Activate Extra Remote Features to operate: engine start/stop Variable RPM Truck horn alert 36” aluminum storage box Safety Cones (2 pcs) w holders and wheel chucks Pair of Aluminum stabilizer pads with holders on each side at front of deck. Options at Extra Cost : Additional 36” aluminum storage box installed 13,000 lb self-steer lift axle installed behind t/a with low profile 22.5” Tires on Alum Rims Alternative Truck : New 2024 West Star 47X w/500 hp 12L Cummins & Auto 18spd (same features as Fliner)
