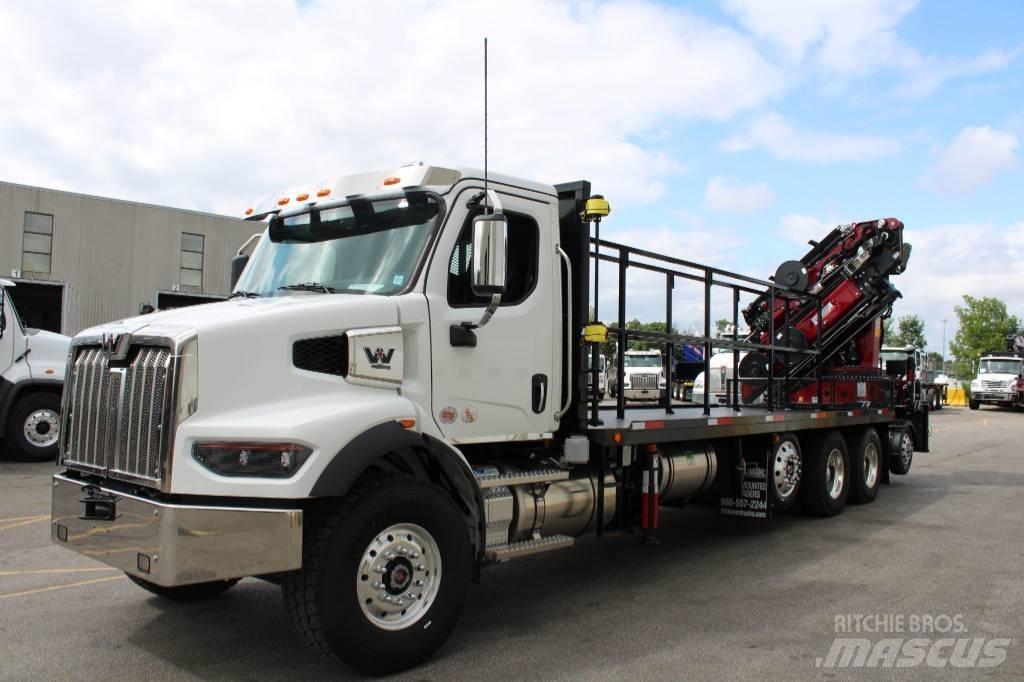

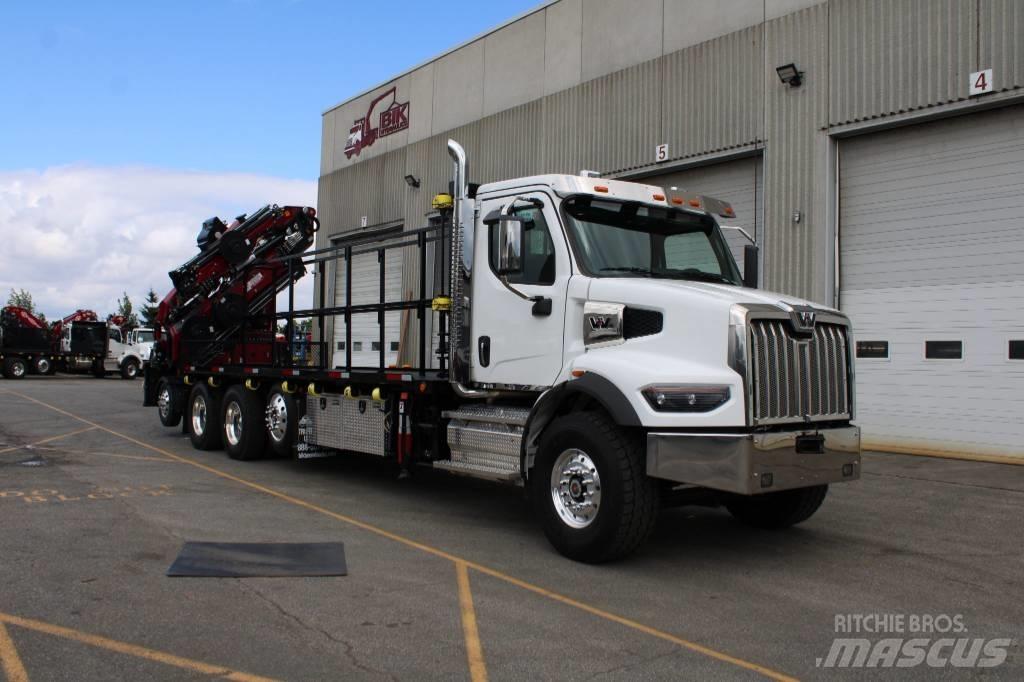

BIK FC-76

Name: BIK FC-76
Brand: BIK
SKU: 28D97640
Availability: InStock

Price excl. VAT

On Request

Favorite

Save search

INFO

DETAILS

Power type

Diesel

Engine power

500 hp (368 kW)

Engine manufacturer

CUMMINS

Gross weight

88,000 lbs

Additional information

Boom Details NEW – BIK SERIES FORMING CRANE FC-67 UNLOADER 51.5 ton/m Folding Hyd 4 ext Knuckle Boom with Detachable 5 ex jib-76′ Horizontal Reach Main Boom Horizontal Capacities: 22,600 lb @ 14′ 18,880 lb @ 19’6″ 11,970 lb @ 25′ 9,500 lb @ 30′ 7,810 lb @ 38’5″ Jib Horizontal Capacities: 3,850 lb @ 48’ 3,310 lb @ 52’ 3,030 lb @ 59’ 2,540 lb @ 64’ 2,540 lb @ 64’ 2,200 lb @ 76’ PM Power-Link connections at Main, Knuckle & Jib Cylinders, Double pilot operated on slewing and pilot opera ed check valves Powerful Planetary Gear Drive – Continuous Boom Rotation that can operate at severe angles without any electronic limitation Extra Wide Main outriggers at pedestal, double beam -hyd out & down 26′ 3″ span, Front Xtra Wide 21′ Span Aux Stabilizers Hydraulics Oil Cooler high pressure return filter and min. 100 -gallon hyd aluminum oil tank with gate valves mounted at front under desk Simplified Hydraulics – Hydraulic overload LLD protection and load holding valve – Offers Simplicity, Reliability Top Seat Controls – with access ladder to seat, manual levers –SCANRECO Radio remote with back up corded remote Warranty: 1-Yr. part & labor on entire boom, 3-Yr. on Structural Components by PM – 24/7 Crane-Tech Support by BIK Installed at rear with integral sub-frame, 3/8′ front and centre, sheer plating mount of sub base for max1m1zed torsion strength Deck Details NEW – 21′ “LOW PROFILE” Steel Checker plate Flat Deck (will accommodate up to 18 form cages) Installed on pre-engineered 6 main sub frame & extension with X-braces for Tortional support lied to truck frame by sheer plating at front, center and rear Side welded 3″ cross members to accommodate deck height at approx. 50″ Checker plate steel deck surface, 66″ +headboard, 8 – under deck sliding tie-down Winch straps on passenger side Winch bar holder and winch bar, dual ladder access at front, reflectors and side lights as required by DOT standards. Truck Details New – Western Star 47X 5-Axle Diesel Truck 88,000 lb GVWR Truck cab white, Cummins 12L Diesel 500 hp, 8LL stand trans 20,000 lb fronts with 425/65R22 5 Front Floatation tires on Alum rims 13,000 lb self-steer lift axle installed ahead of tandems 46,000 LB Rears on Tuftrac Suspension 11R22.5 tires on Aluminum rims 9,000 lb self steer tag axle installed under boom Double frame chassis Truck Features Include: Two Stage Engine Brake, Air Cond., AM/FM stereo, cruise tilt/tele steer column, power windows/locks chrome bumper and grill, power and heated mirrors, eng block heater, painted ext visor, hood mirrors, trailer air tow package rear wheel lock ups, 80 gal alum fuel tank, Client info Door Decaling included, Auto Lube, etc. Also Included: (2) pcs – 36″ Aluminum Storage Box Installed under deck, – (4) pcs of PVC Stabilizer pads with holders Options at Extra Cost: 1 drawplate installed at rear of truck for pintle hook Heated Enclosed Cab at Top Seat Controls – supplied & installed by Cabines Nadeau Removable Centre Divider – 20’LongShow more
