Shantui DH17R for sale - China

ON REQUEST
ON REQUEST

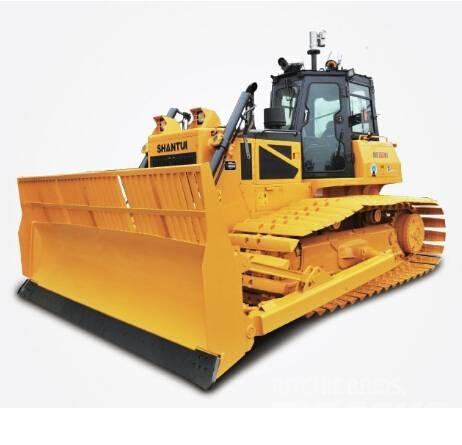

Shantui DH17R

BASIC INFORMATION

CategoryCrawler dozers
Brand / modelShantui DH17R
Year2018
Extra optionsNew/unused
LocationJining, Shandong, China
Country
Mascus ID8B2C320D
+ Show more details

PRICING

Price Excluding TaxOn Request

DETAILS

Customer asset numberDH17R
Date of latest inspectionyes
Condition level grade (1-5)
Full service historyYes
Working width11.2
feet
Serial numberDH17R
Gross weight41,667 lbs
Blade typeSemi u-blade
UndercarriageTracked
Emission levelStage IIIA / Tier III
Cabin typeEnclosed cab
EngineWeichai WP10G190E354
Engine power170 hp (125 kW)
Track width35.4 inches
TransmissionHydraulic
Transport dimensions (LxWxH)5.25*3.42*3.08
inches
Original coloryellow
Tire brandSHANTUI
Condition Info/GuaranteeISO9001
Undercarriage100 %
Production countryChina
Delivery termsFOB, CFR, CIF, EXW
Accessories
  • - Winch
  • - Air conditioning
  • - Additional hydraulics
  • - Multi shank ripper
  • - Engine heater
CertificatesEPA, CE, ANSI
Additional informationTechnical Features
●Weichai engine and high-efficiency fuel injection pump features high torque, high performances, high parts universality, and low maintenance cost.
●The electronically controlled static pressure drive system equipped can automatically adapt to the load variation and provide best bulldozing speed under different working loads.
●The intelligent matching technology can achieve best working efficiency and most reasonable fuel economy, with the composite fuel consumption reduced by 10~15%.
●The ergonomic hexahedral cab features large space and excellent visual field.
●The suspended single accelerator pedal features small volume, large foot space, and high operation comfort. ?
●The extensively adjustable seat and armrests provide the driver with the most comfortable operation posture.
●The integrally sealed shock-absorbing system of the cab reduces the interior noise by 3~4dB.
●The safety passage system of the whole machine guarantees the driver’s safety.
●With electronically controlled traveling system and hydraulic pilot controlled working device, the traveling system and the working device can be controlled by single joystick.
●The accurate control can be achieved by low operating forces, featuring flexible and light operations, high operation comfort, and high working efficiency.
●The static pressure drive system is capable of stepless speed change, loaded steering, and pivot steering, featuring high flexibility and mobility and applicability for diversified working conditions.
●The accurate control can realize the bulldozing operations in narrow spaces.
●The chassis system features long ground length, high ground clearance, stable traveling, and excellent trafficability and the semi-U blade equipped features powerful operation capability.
●The optional three-tooth ripper and traction frame are available to meet the diversified operation needs.
●The structural parts inherit the excellent quality of Shantui mature products.
●The electric harnesses adopt seamless corrugated pipes and branching deconcentrators, featuring high protection grade.
●The core electric and hydraulic units adopt imported products, featuring stable and reliable quality and extremely high reliability.
●The static drive system features compact structure, small volume, light weight, and easy maintenances.
●The modular structure eases the disassembling of parts and ensures low maintenance cost.

Performance Parameters
Length × width × height (mm) (excluding ripper) 5250×3420×3080 Operating weight (t) (excluding ripper) 18.9(including ripper)
Engine model WD10G190E213 Net power/rated speed (kW/rpm) 127/2000
Ground pressure(Mpa) 0.064 Blade type Semi-U blade
Blade capacity(m3) 4.4

Applicable Working Conditions
Landfill of earthworks and bulldozing of other bulk materials and operations in extremely narrow sites.
